OEM Custom Racks
18pcs
Automatic robot welding machines
Two robot welding workshops with 20 Panasonic robot welding arms, set up in 2008.
Specifications
The fields recorded on the original build sheet. A custom fixture carries the rest of its dimensions on the project drawing.
| Overall Size | 2280 × 1200 × 1050 mm |
|---|---|
| Surface Treatment | Powder coating |
| Build Basis | Customer drawings or samples |
Powder coating, this rack
The original build sheet lists powder coating for this rack, the finish listed for every rack in the custom line. The coat covers the end frames, the support tubes and the base runners shown in the drawings. No load rating is listed for this build.
Galvanized, the trolley side
Zinc plating appears elsewhere in our range, for example on the 4-tier zinc plated milk trolley. Every rack in this custom line is listed with powder coating instead.
At 1050 mm high, this tire rack records only its size and surface treatment on the original build sheet, and everything else is set on the project drawing.
Where the tire storage rack works

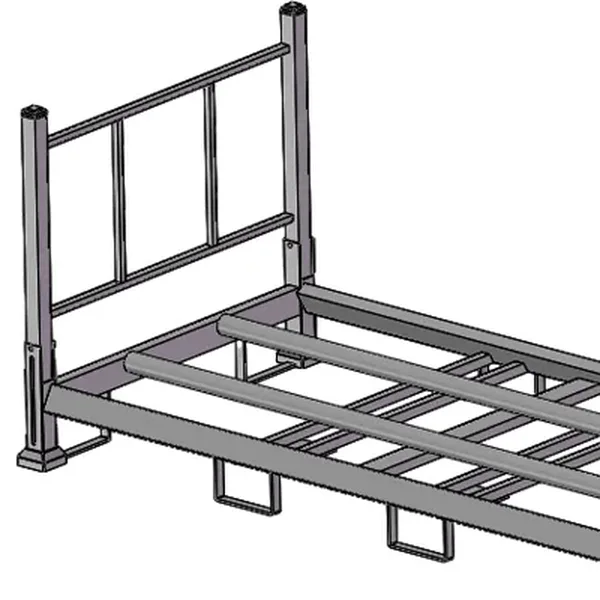

The design drawings show tires carried on longitudinal tubes between two end frames, over a base that forks can reach. The rack measures 2280 mm along the tubes and 1200 mm across.
Tires on support tubes

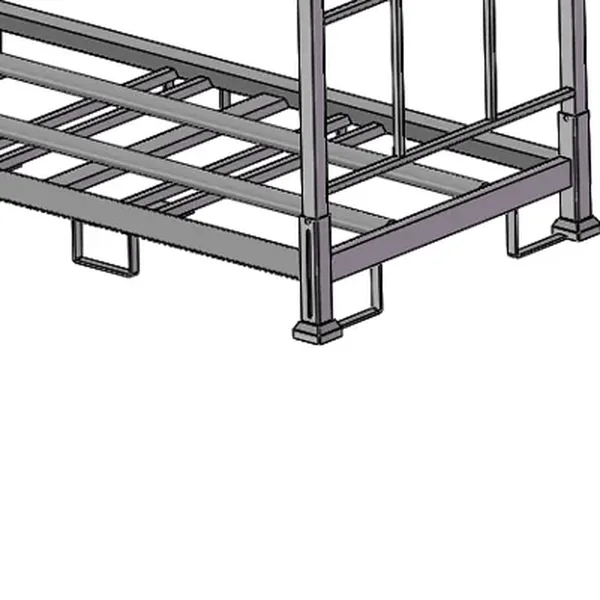

Tires rest in rows across the longitudinal support tubes, held between the two end frames shown in the drawings. The images on this page are design drawings of the build.
Automotive parts logistics
Racks in this custom line are built to carry automotive parts, and our custom automotive racks page shows the whole line. Each build on these pages was made for one specific part, as its name shows.
Warehouse moves on forks
The base runners leave fork clearance in the drawings, so a loaded rack can be lifted and moved as one unit.
How These Custom Racks Are Built
Every rack in this line is a custom build. Our R&D team develops and produces racks based on customer provided drawings or samples, so the size, load capacity and fittings of each project follow the part the rack carries. The racks on these pages are finished examples of that work.
Steel parts are cut on a 6,000 W laser plate cutting machine and a 3,000 W laser pipe cutting machine, added in 2022 to bring more stable product quality. The laser cuts parts to the design requirements and leaves flat, smooth edges that need no secondary processing. Frames are joined by 18 automatic robot welding machines, whose visual recognition and precise servo control systems give uniform, firm welds at millimeter-level precision and reduce human error. The production equipment also includes an intelligent automatic painting line and sandblasting machines, and the surface treatment listed for every rack in this line is powder coating.
Quality inspection runs in four steps, covering incoming materials, inspection by workers and quality inspectors during production, inspection before surface treatment and a final inspection before delivery. Every link of the process has its own quality control points, raw material warehousing inspection and finished product delivery included. A quality inspection report is provided before delivery, and production process design and program control keep each batch stable and traceable.
After delivery, an after-sales service team made up of technical staff provides 24-hour tracking service on the order.
FAQ
What size is the Car Tire Storage Rack with Support Tubes?
It measures 2280 × 1200 × 1050 mm.
What surface treatment does the Car Tire Storage Rack with Support Tubes have?
The surface treatment is powder coating.
How does this rack hold the tires?
On longitudinal support tubes. The design drawings show the tubes running between two end frames, along the 2280 mm length of the rack, so tires rest across the tubes in rows. The tube spacing and row count follow the tire size on the project drawing.
Where is the load rating for the car tire rack?
On the project drawing. The original build sheet records only the size and surface treatment for this rack, so the load capacity is confirmed on the drawing for each order, together with the tire size and row count.
Can the rack be resized for my tire dimensions?
Yes. Our R&D team develops and produces racks based on customer provided drawings or samples. For standard tire storage, our turnover range also includes a detachable tire stacking rack .
How many car tire racks fit into a 40HQ container?
The original build sheet gives no container count for this rack. At 2280 × 1200 × 1050 mm, the number per 40HQ depends on the final drawing and the order quantity, so it is worked out in the loading plan before shipment.
What comes with a shipment of car tire racks?
A quality inspection report is provided before delivery, after the four inspection steps described in the section above. The container loading plan is confirmed with the order, since a custom rack has no fixed container count.
