OEM Custom Racks
18pcs
Automatic robot welding machines
Two robot welding workshops with 20 Panasonic robot welding arms, set up in 2008.
Specifications
The fields recorded on the original build sheet. A custom fixture carries the rest of its dimensions on the project drawing.
| Overall Size | 1726 × 1126 × 1300 mm |
|---|---|
| Load Capacity | 1,500 kg |
| Surface Treatment | Powder coating |
| Build Basis | Customer drawings or samples |
Powder coating, this pallet
The original build sheet lists powder coating for this pallet, the finish listed for every rack in the custom line. The coat covers the welded frame, the corner posts and the base with its fork pockets.
Galvanized, the trolley side

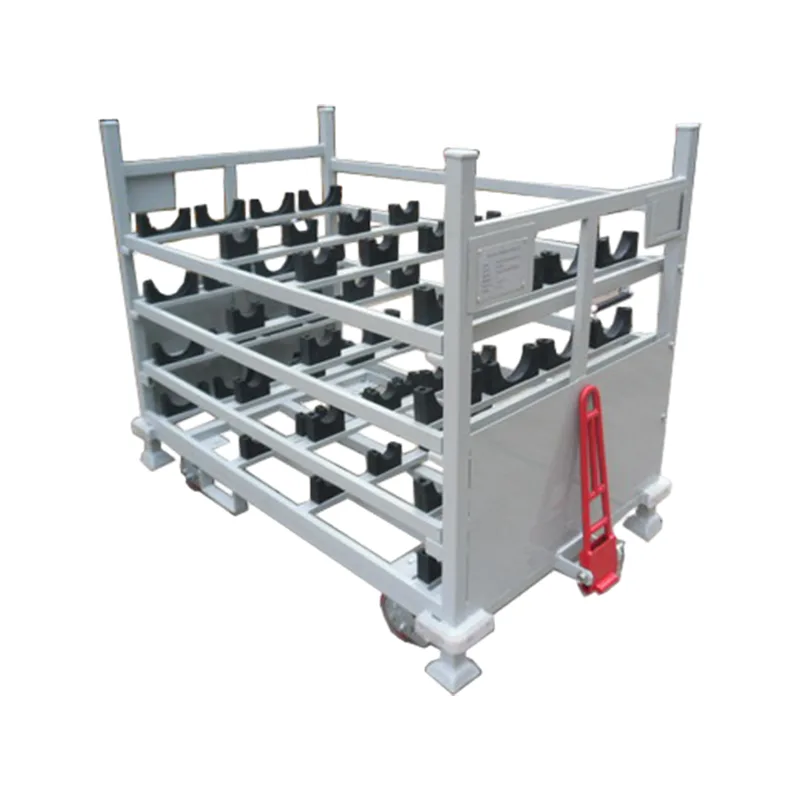

Zinc plating appears elsewhere in our range, for example on the 4-tier zinc plated milk trolley. Every rack in this custom line is listed with powder coating instead.
This engine pallet carries 1,500 kg on locating pins, 300 kg less than the engine rack, which holds its engine in saddles under clamp bars.
Where the engine pallet works

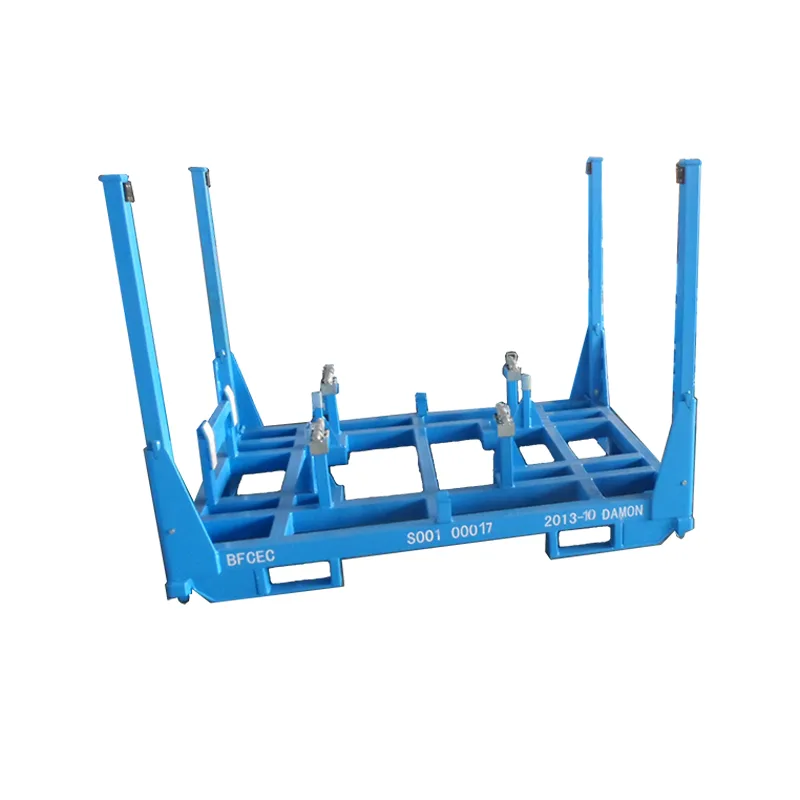

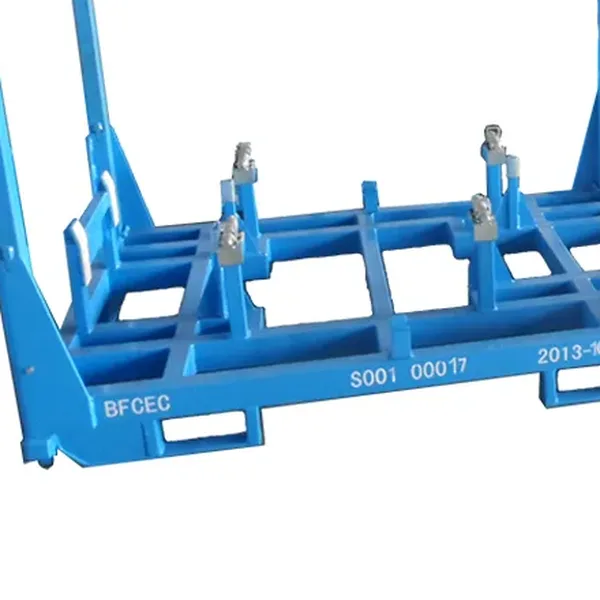

The photos show the engine located on pins with retaining clips, inside corner posts, on a base with fork pockets.
Engines on locating pins
The engine sits on locating pins secured with retaining clips, and the pin layout for a project is set on the drawing, up to the 1,500 kg rating.
Automotive parts logistics
Racks in this custom line are built to carry automotive parts, and our custom automotive racks page shows the whole line. Each build on these pages was made for one specific part, as its name shows.
Fork pockets in the base

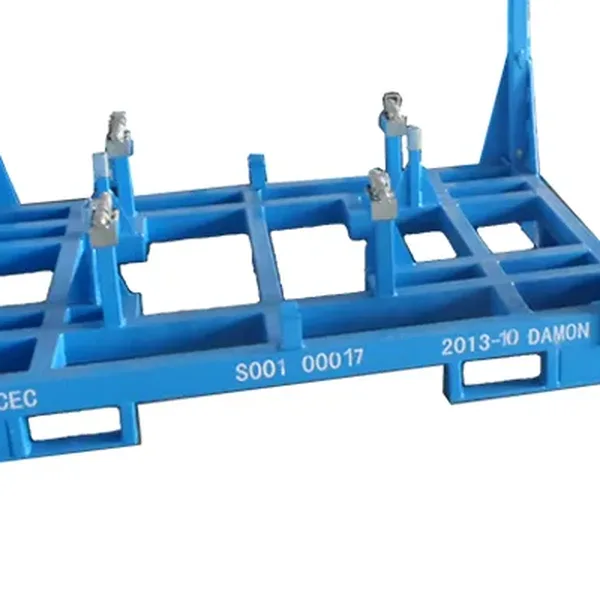

The base has fork pockets in its welded frame, so a loaded pallet can be lifted and moved as one unit.
How These Custom Racks Are Built
Every rack in this line is a custom build. Our R&D team develops and produces racks based on customer provided drawings or samples, so the size, load capacity and fittings of each project follow the part the rack carries. The racks on these pages are finished examples of that work.
Steel parts are cut on a 6,000 W laser plate cutting machine and a 3,000 W laser pipe cutting machine, added in 2022 to bring more stable product quality. The laser cuts parts to the design requirements and leaves flat, smooth edges that need no secondary processing. Frames are joined by 18 automatic robot welding machines, whose visual recognition and precise servo control systems give uniform, firm welds at millimeter-level precision and reduce human error. The production equipment also includes an intelligent automatic painting line and sandblasting machines, and the surface treatment listed for every rack in this line is powder coating.
Quality inspection runs in four steps, covering incoming materials, inspection by workers and quality inspectors during production, inspection before surface treatment and a final inspection before delivery. Every link of the process has its own quality control points, raw material warehousing inspection and finished product delivery included. A quality inspection report is provided before delivery, and production process design and program control keep each batch stable and traceable.
After delivery, an after-sales service team made up of technical staff provides 24-hour tracking service on the order.
FAQ
What is the load capacity of the Engine Pallet with Locating Pins?
The load capacity is 1,500 kg.
What size is the Engine Pallet with Locating Pins?
It measures 1726 × 1126 × 1300 mm.
What surface treatment does the Engine Pallet with Locating Pins have?
The surface treatment is powder coating.
How does the pallet hold an engine still in transit?
With locating pins and retaining clips. The photos show the pins on the pallet frame with retaining clips that secure them, between the corner posts. The pin positions for a project follow the engine on the drawing.
Is there a patent behind our engine fixtures?
Ping Fang holds a utility model patent for an engine parts storage rack, ZL 2024 2 1540480.6. The certificate scan is on our certificates page , listed by its name and number.
Where does the 1,500 kg rating of the engine pallet come from?
The original build sheet lists 1,500 kg for this pallet. For a new project the load capacity is set on the drawing together with the size and fittings, and each batch goes through the four inspection steps described above.
Can the pin layout be changed for my engine model?
Yes. Our R&D team develops and produces racks based on customer provided drawings or samples. The locating pins follow the engine shown on the drawing.
What comes with a shipment of engine pallets?
A quality inspection report is provided before delivery, after the four inspection steps described in the section above. The container loading plan is confirmed with the order, since a custom rack has no fixed container count.
