Specifications
The fields recorded on the original build sheet. A custom fixture carries the rest of its dimensions on the project drawing.
| Overall Size | 2243 × 1191 × 760 mm |
|---|---|
| Load Capacity | 1,800 kg |
| Surface Treatment | Powder coating |
| Build Basis | Customer drawings or samples |
Powder coating, this rack
The original build sheet lists powder coating for this rack, the finish listed for every rack in the custom line. The coat covers the frame, the saddles and the clamp bars that carry the 1,800 kg rating.
Galvanized, the trolley side
Zinc plating appears elsewhere in our range, for example on the 4-tier zinc plated milk trolley. Every rack in this custom line is listed with powder coating instead.
At 1,800 kg, this engine rack has the highest rating in the custom line, 300 kg above the engine pallet, the gearbox rack and the car parts rack.
Where the engine rack works

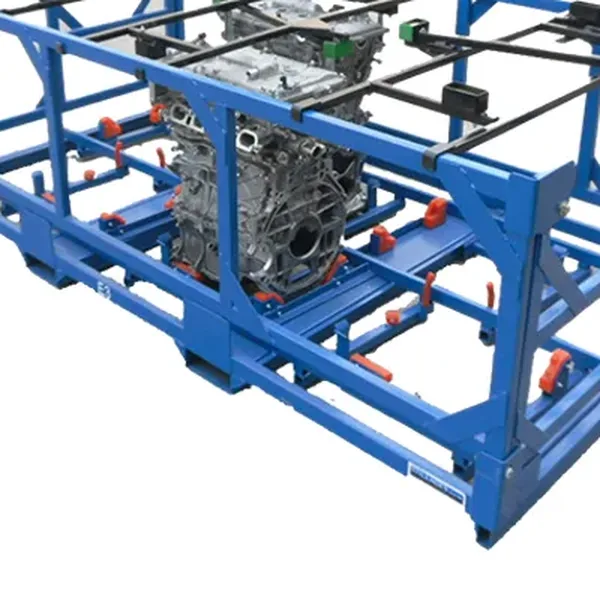

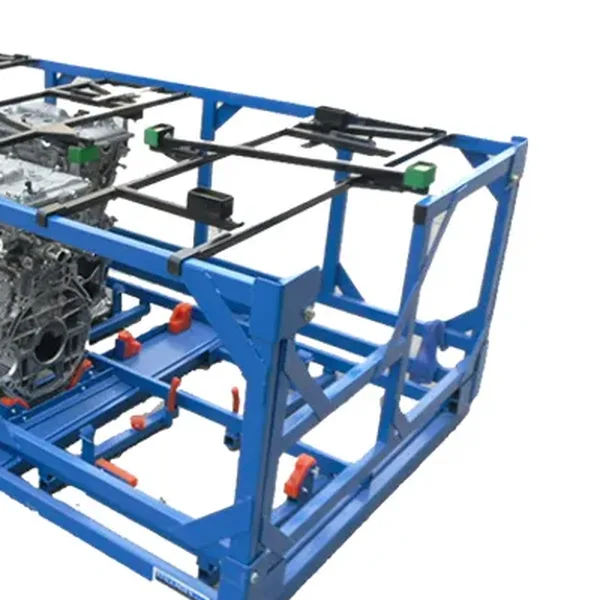

The photos show each engine block seated in a shaped saddle, with clamp bars across the top frame.
Engines in shaped saddles
Engine blocks sit in saddles shaped to them, and the clamp bars across the top frame hold them in place, with up to 1,800 kg on the rack.
Automotive parts logistics
Racks in this custom line are built to carry automotive parts, and our custom automotive racks page shows the whole line. Each build on these pages was made for one specific part, as its name shows.
A low 760 mm frame
The frame stands 760 mm high, lower than the 1300 mm engine pallet and the 1280 mm gearbox rack in this line.
How These Custom Racks Are Built
Every rack in this line is a custom build. Our R&D team develops and produces racks based on customer provided drawings or samples, so the size, load capacity and fittings of each project follow the part the rack carries. The racks on these pages are finished examples of that work.
Steel parts are cut on a 6,000 W laser plate cutting machine and a 3,000 W laser pipe cutting machine, added in 2022 to bring more stable product quality. The laser cuts parts to the design requirements and leaves flat, smooth edges that need no secondary processing. Frames are joined by 18 automatic robot welding machines, whose visual recognition and precise servo control systems give uniform, firm welds at millimeter-level precision and reduce human error. The production equipment also includes an intelligent automatic painting line and sandblasting machines, and the surface treatment listed for every rack in this line is powder coating.
Quality inspection runs in four steps, covering incoming materials, inspection by workers and quality inspectors during production, inspection before surface treatment and a final inspection before delivery. Every link of the process has its own quality control points, raw material warehousing inspection and finished product delivery included. A quality inspection report is provided before delivery, and production process design and program control keep each batch stable and traceable.
After delivery, an after-sales service team made up of technical staff provides 24-hour tracking service on the order.
FAQ
What is the load capacity of the Engine Rack with Clamp Bars?
The load capacity is 1,800 kg.
What size is the Engine Rack with Clamp Bars?
It measures 2243 × 1191 × 760 mm.
What surface treatment does the Engine Rack with Clamp Bars have?
The surface treatment is powder coating.
How does the rack hold engines still in transit?
With shaped saddles and clamp bars. The photos show each engine block seated in a saddle shaped to it and adjustable clamp bars running across the top frame. The saddle and clamp layout for a project is set on the drawing.
Does Ping Fang hold a patent for engine racks?
Yes. Ping Fang holds a utility model patent for an engine parts storage rack, ZL 2024 2 1540480.6, and the certificate scan is on our certificates page .
Where does the 1,800 kg rating of the engine rack come from?
The original build sheet lists 1,800 kg for this rack. For a new project the load capacity is set on the drawing together with the size and fittings, and each batch goes through the four inspection steps described above.
Can the saddles be reshaped for my engine model?
Yes. Our R&D team develops and produces racks based on customer provided drawings or samples. The saddles follow the engine block the rack carries, and the clamp bars are set to the same drawing.
What comes with a shipment of engine racks?
A quality inspection report is provided before delivery, after the four inspection steps described in the section above. The container loading plan is confirmed with the order, since a custom rack has no fixed container count.
