Milk Trolley and Roll Cage Trolley
Foldable Zinc-Plated Milk Roll Cage Manufacturer in China
Two standard milk trolley models carry dairy crates between cold store and doorstep and fold flat into nesting stacks after the round, alongside eighteen roll cage trolley models for logistics and two plant trolleys for nurseries and flower markets.
Built For Dairy Rounds
ZINC-PLATED NESTABLE ROLL CAGES FOR DAIRY ROUNDS
A milk trolley spends its life outdoors and in wash-down areas, loaded with crates and pushed over kerbs every morning. Both standard models are welded on our robot stations and galvanized against rust, with mesh shelves that let staff see stock levels at a glance.
The frames are foldable and nestable, which is why a 40HQ container takes up to 500 trolleys and the per-unit sea freight stays low. We export more than 10,000 milk trolleys to Europe every year, and distribution partners like Tirlán run trolleys of this type on daily dairy distribution rounds. The galvanized finish is standard on both models, and the finish for a custom order is confirmed with the quotation.
Ping Fang products play an important role in all kinds of logistics processes. More about this product line is on the Logistics Trolley solution page.
Dairy distribution partners such as Tirlán run this trolley type on daily delivery rounds.
Folded frames nest into each other, so the container count decides the landed cost.
Zinc plating protects the frame from rust outdoors and in wash-down areas.
Model Ledger
MILK TROLLEY & ROLL CAGE TROLLEY SPECIFICATIONS
Twenty-two models from our factory records, two dairy milk trolleys, eighteen logistics roll cages and two plant trolleys, with sizes, loads and container counts as listed.
Milk Roll Cage Trolleys
2 modelsBoth carry the same 250 kg working load, so the choice comes down to the tier count and the crate sizes you run.
| Model | Product | Tiers | Size (mm) | Load | Self-weight | Surface | 40HQ loading | |
|---|---|---|---|---|---|---|---|---|

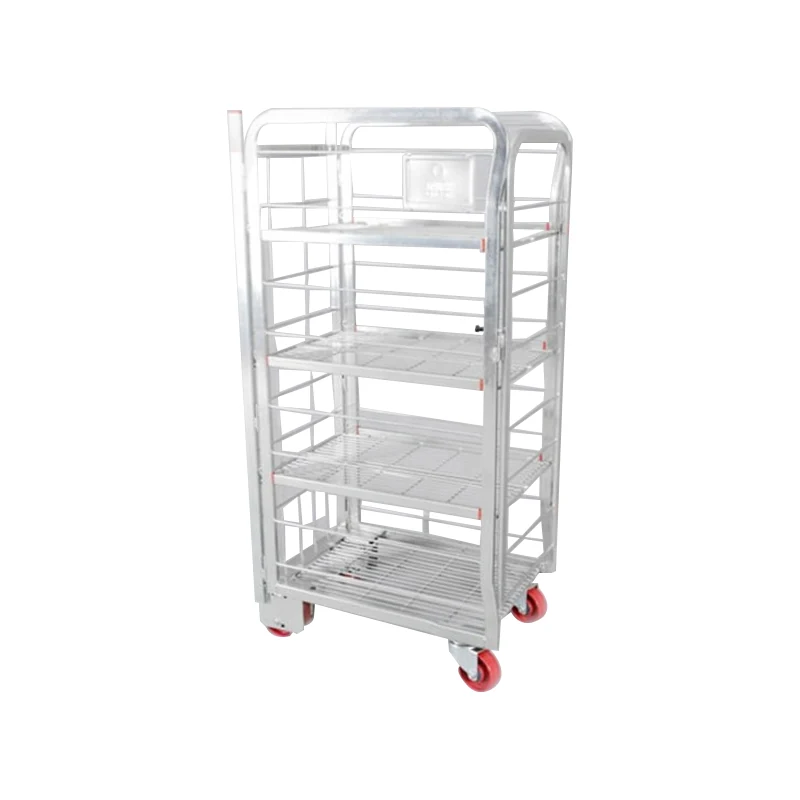

| MT001 | 4-Tier Zinc Plated Foldable and Nestable Milk Roll Cage Milk Trolley | 4 | 657 × 419 × 1300 | 250 kg | 32 kg | Galvanized | 500 pcs | Details |
| MT002 | 5-Tier 4-Wheel Supermarket Mesh Shelf Storage Milk Roll Cage Milk Trolley | 5 | 665 × 430 × 1309 | 250 kg | 38 kg | Galvanized | 490 pcs | Details |
Four milk trolley build details that decide the working day
A milk trolley is bought on its running gear rather than its mesh. These are the four components behind the table above, and each one can be checked.
Double-brake swivel casters
Standard on both models
With the pedal pressed, a loaded 250 kg cage stands still on a sloping dock, at a kerbside stop or inside a truck that is already rolling to the next drop.
Foldable and nestable frame
One container rate, split up to 500 ways
The fold hinge works as a freight device first, because nested frames put up to 500 trolleys into one 40HQ, and the same hinge shrinks the fleet in the depot between rounds. The design is covered in more detail in our article on the 4-tier zinc plated milk trolley for dairy transportation.
Patented milk trolley structure
Utility model ZL 2023 2 0649660.7
The milk trolley structure is covered by a granted utility model patent, and the scan sits on the certificates page for your supplier file.
Fold-up tier shelves
Hinged shelf on every tier
The shelf on each tier folds up, which gives staff room to load and pick crates on the tier below.

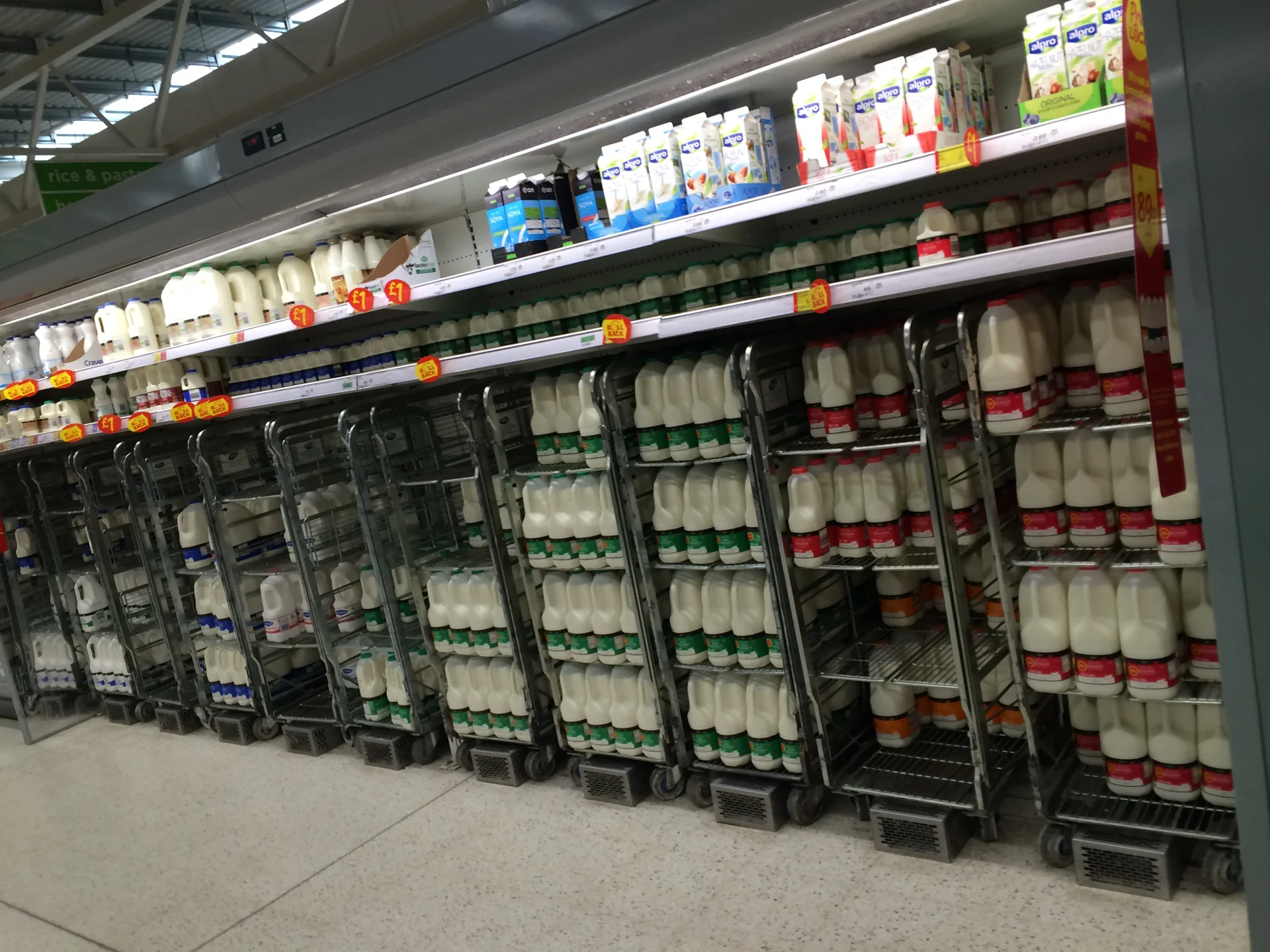

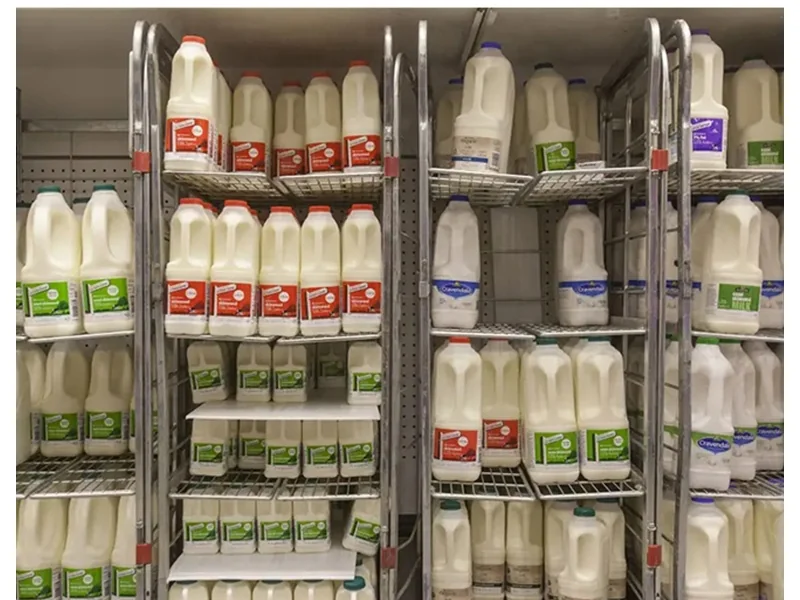

Milk trolleys at the dairy and in the supermarket chiller

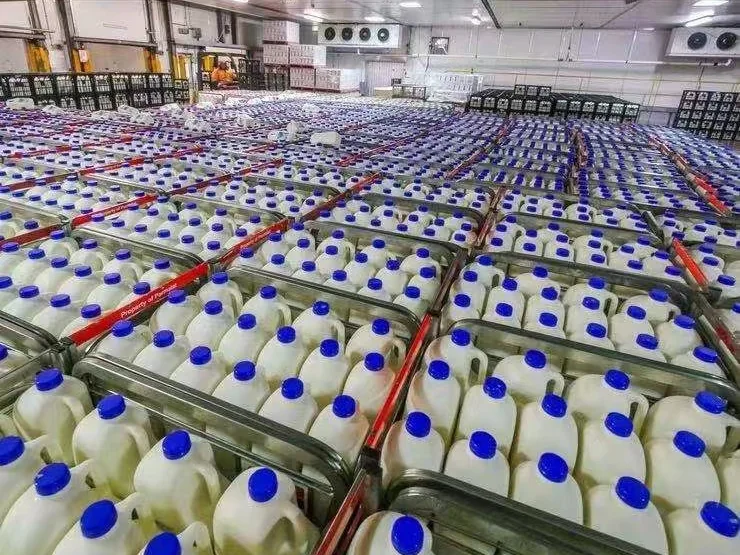

Both milk trolley models are designed to match the milk packing line. Milk is loaded onto the trolley at the dairy, travels on it to the store and is sold from it in the chiller, with no unloading in between.
The wider roll cage family from the same welding line
Milk trolleys are the dairy-sized end of the factory's roll cage output. Eighteen more roll cage trolleys, also called roll containers, are rated 300 to 500 kg, run down the same robot welding stations and carry the backroom side of supermarket and retail distribution. Every model has its own datasheet below, and specification sheets are sent with a quotation. Surface figures are shown as recorded on the old line sheets, and where a product name reads "powder coated" against a galvanized sheet entry, the finish is confirmed with the quotation.
2-Sided Roll Cage Trolley
1 modelAn open two-sided frame for fast side loading, galvanized and folding, with a 300 kg working load.
| Model | Product | Size (mm) | Load | Surface | 40HQ loading | |
|---|---|---|---|---|---|---|

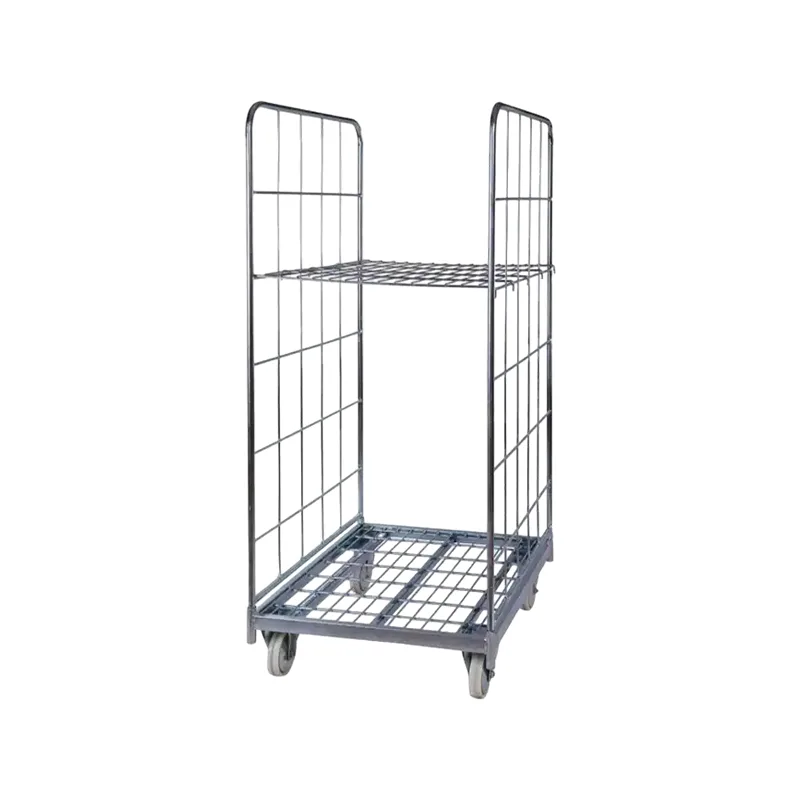

| PFRC001 | Logistics Transportation Galvanized Metal Wire Mesh 2-Sided Roll Cage Trolley | 720 × 810 × 1650 | 300 kg | Galvanized | 450 pcs | Details |
3-Sided Roll Cage Trolleys
8 modelsThree-sided folding fences between 715 and 1100 mm wide, all rated 500 kg, including a picking trolley with fold-away steps.
| Model | Product | Size (mm) | Load | Surface | 40HQ loading | |
|---|---|---|---|---|---|---|

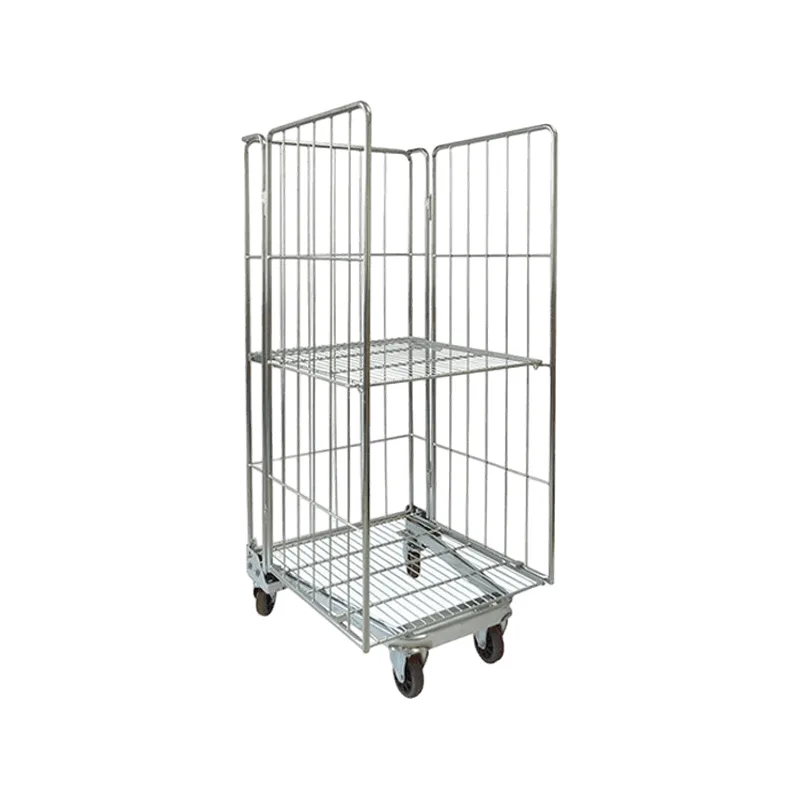

| PFRC002 | Warehouse Storage Zinc Finish Wire Mesh 3-Sided Roll Cage Trolley | 715 × 825 × 1730 | 500 kg | Galvanized | 190 pcs | Details |

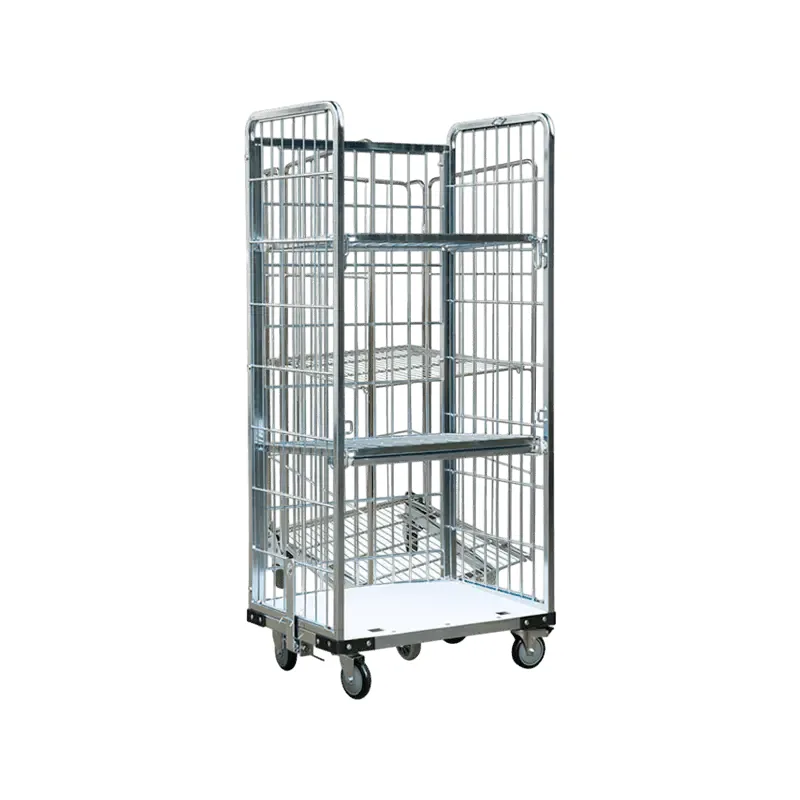

| PFRC003 | Warehouse Three Layer Fence Folding 3 Sided Roll Container | 800 × 700 × 1800 | 500 kg | Galvanized | 294 pcs | Details |

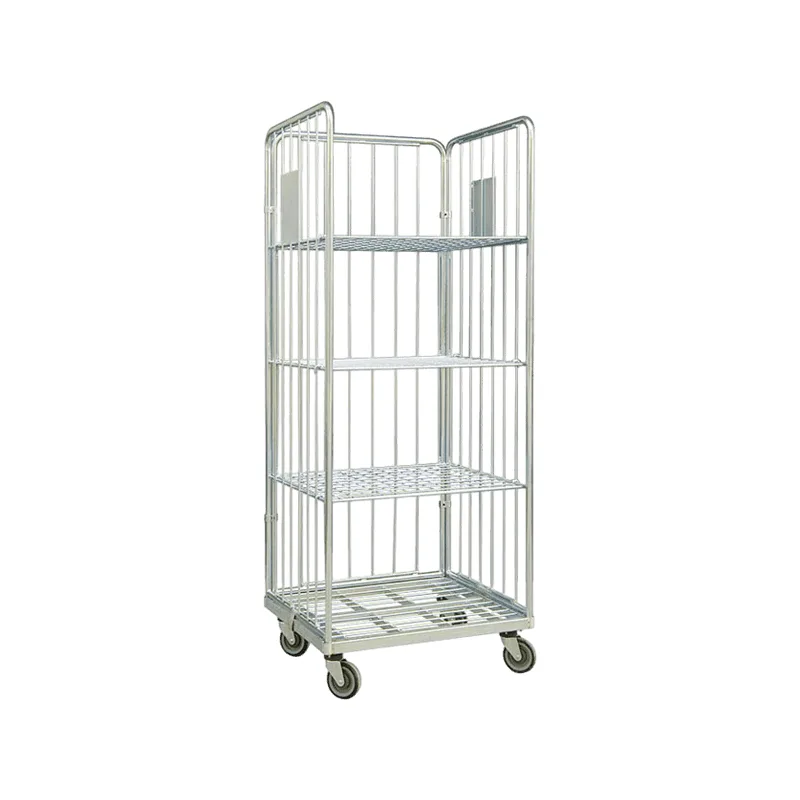

| PFRC004 | Industrial Logistic Multi-Layer Folding 3 Sided Roll Cage Trolley | 800 × 712 × 1992 | 500 kg | Galvanized | 294 pcs | Details |

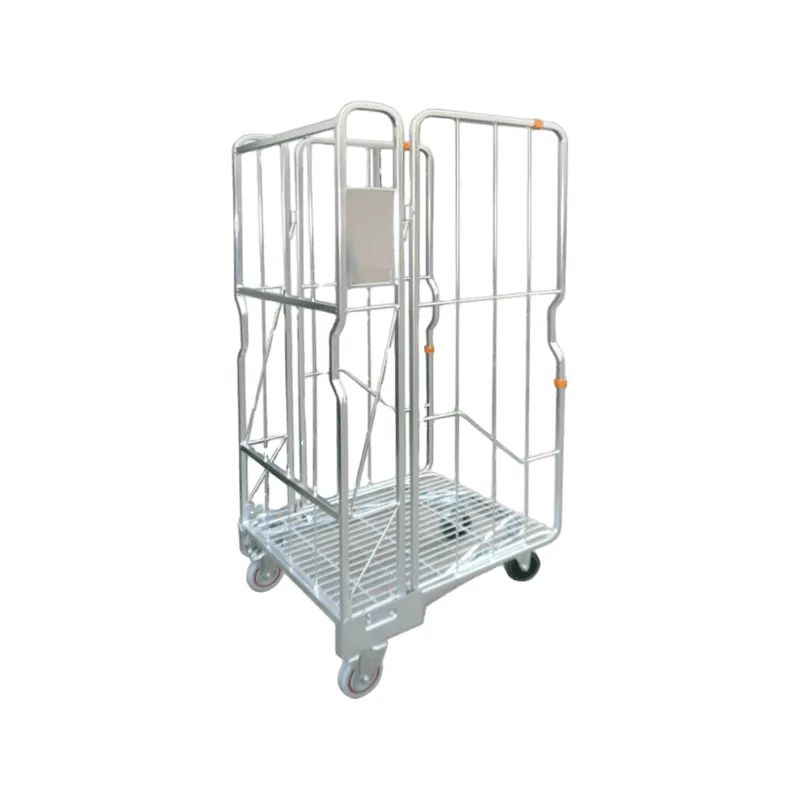

| PFRC005 | 3 Sided Nestable Foldable Logistics Wire Mesh Roll Cage Trolley | 815 × 670 × 1739 | 500 kg | Galvanized | 288 pcs | Details |

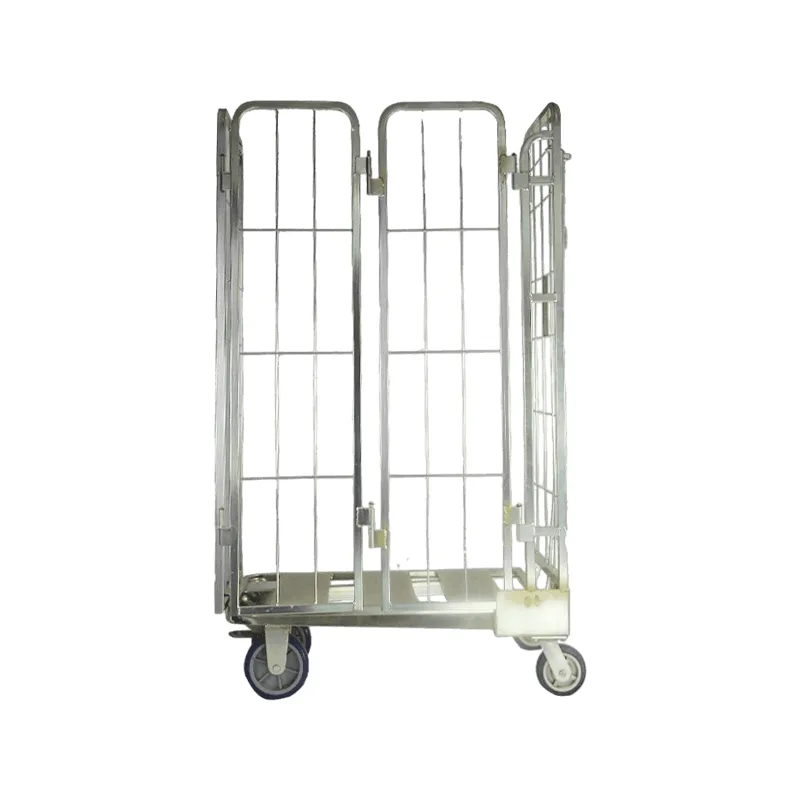

| PFRC006 | Warehouse Logistic Cargo Storage 3 Sided Roll Cage Trolley | 1085 × 608 × 1840 | 500 kg | Galvanized | 144 pcs | Details |

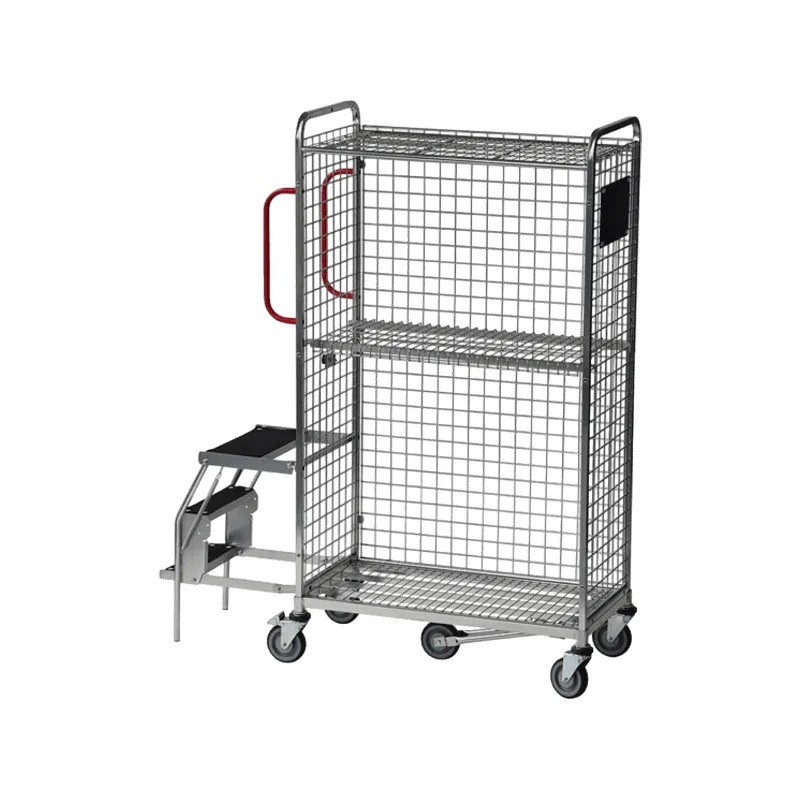

| PFRC07 | Galvanized Multifunctional Picking Trolley With Fitted Fold Away Steps | 1025 × 460 × 1627 | 500 kg | Galvanized | 240 pcs | Details |

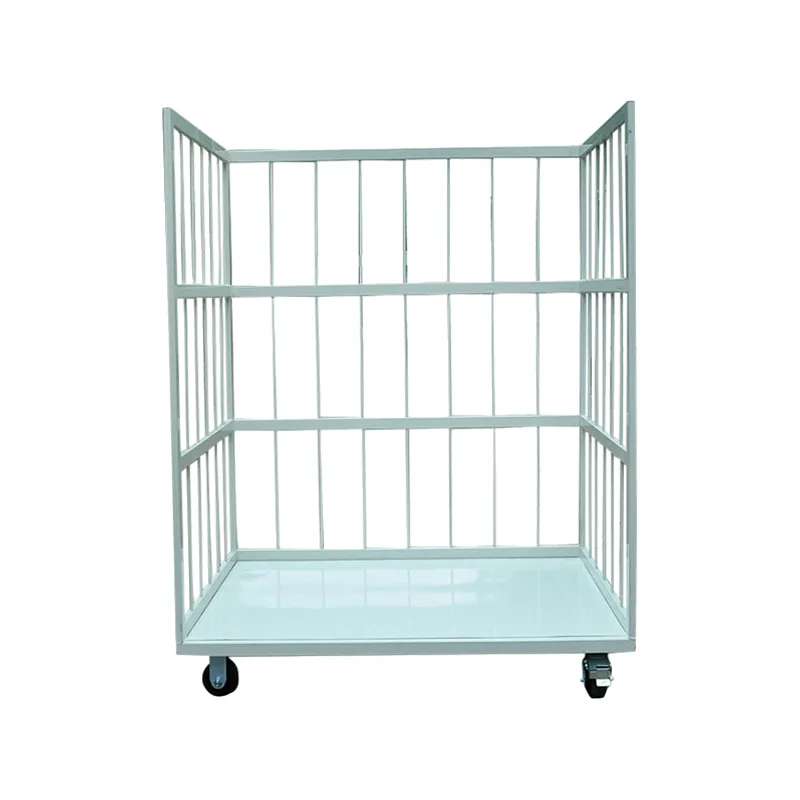

| PFRC008 | 3 Sided Fence Folding Material Handling Steel Roll Cage Trolley | 1010 × 820 × 1600 | 500 kg | Galvanized | 150 pcs | Details |

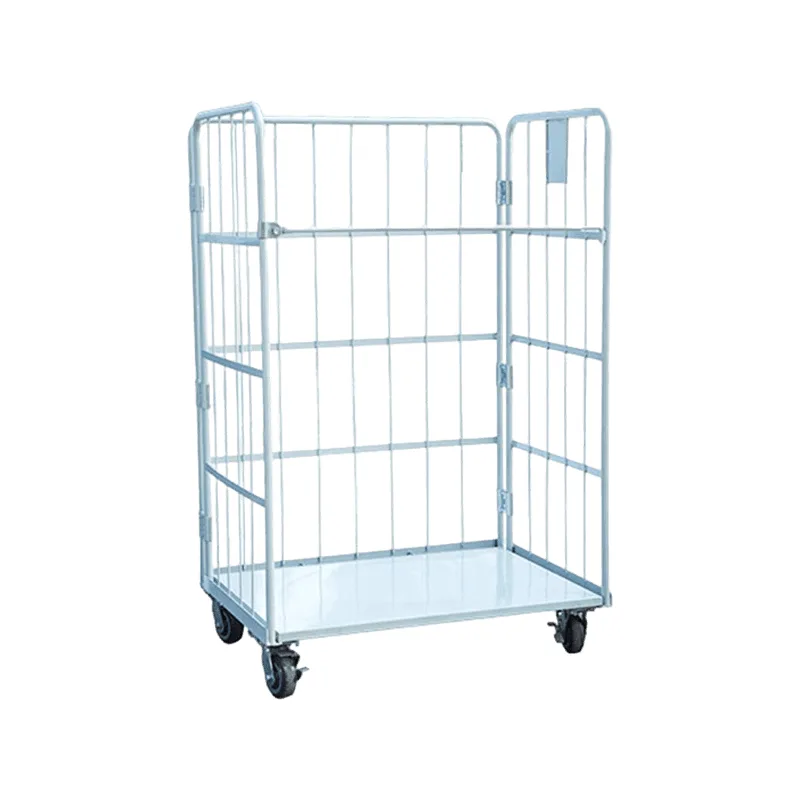

| PFRC009 | 3 Sided Foldable Wire Mesh Rolling Cage Trolley For Logistics And Turnover | 1100 × 800 × 1700 | 500 kg | Galvanized | 100 pcs | Details |
4-Sided Roll Cage Trolleys
9 modelsFully fenced builds up to a four-door security cage, all rated 500 kg, with 100 to 270 pcs per 40HQ container.
| Model | Product | Size (mm) | Load | Surface | 40HQ loading | |
|---|---|---|---|---|---|---|

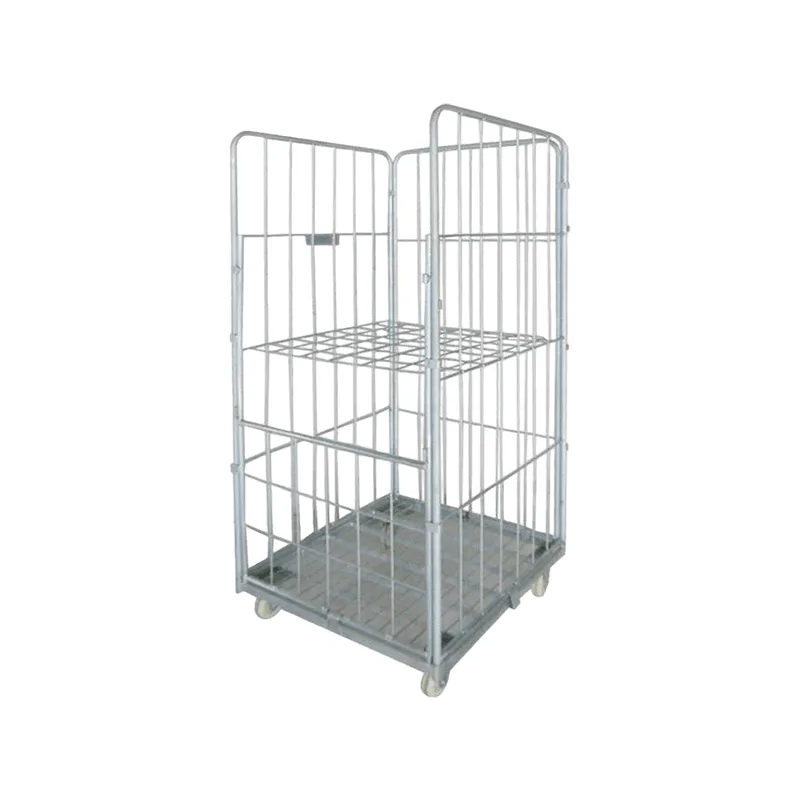

| PFRC010 | 4 Sided Logistic Storage Galvanized Metal Foldable Roll Container | 805 × 710 × 1795 | 500 kg | Galvanized | 270 pcs | Details |

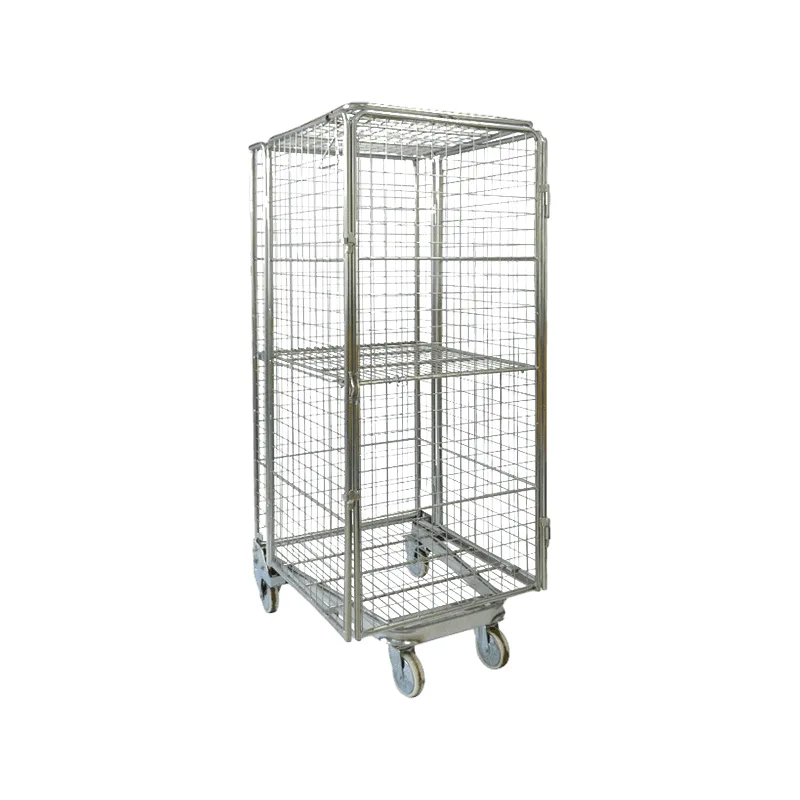

| PFRC011 | 4 Sided Material Handling Industry Metal Wire Mesh Folding Roll Cage Trolley | 715 × 825 × 1730 | 500 kg | Galvanized | 190 pcs | Details |

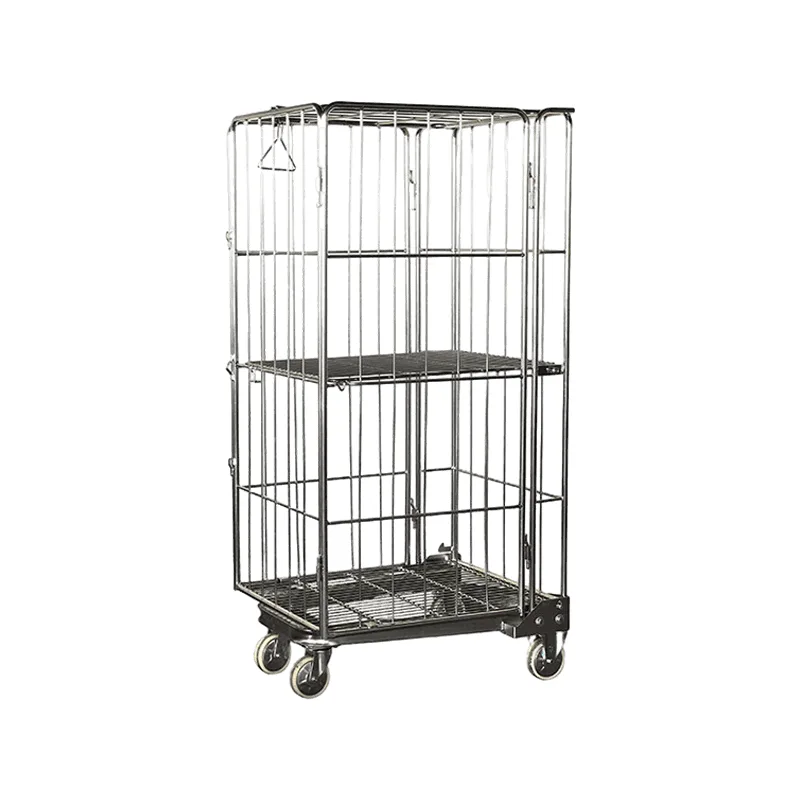

| PFRC012 | Two Layers 4 Sided Closed With Top Net Roll Container Roll Cage Trolley | 715 × 825 × 1730 | 500 kg | Galvanized | 190 pcs | Details |

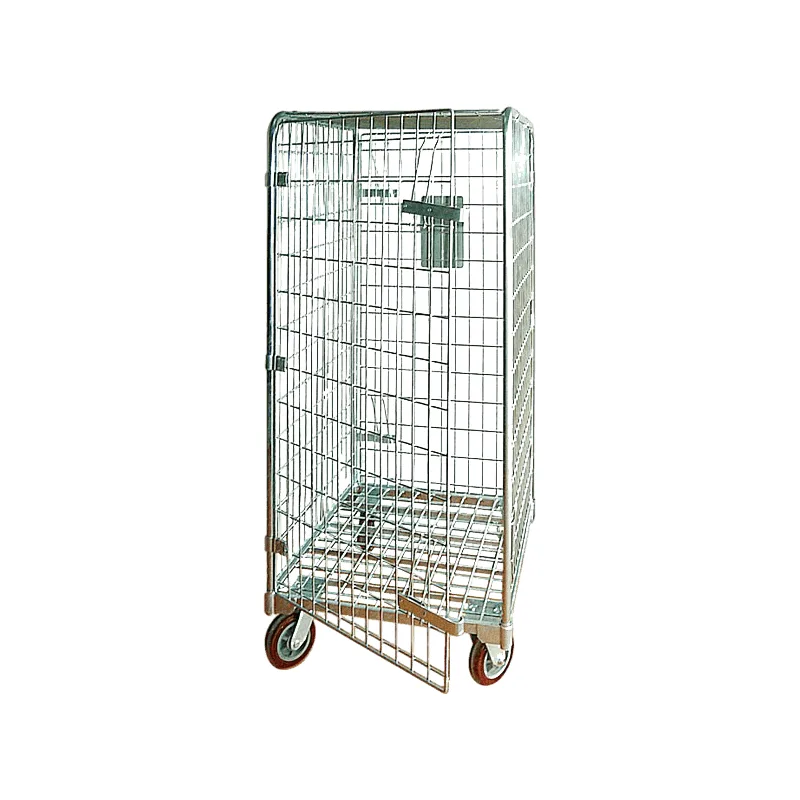

| PFRC013 | Heavy Duty Warehouse High Storage Capacity 4 Sided Roll Container | 710 × 810 × 1550 | 500 kg | Galvanized | 270 pcs | Details |

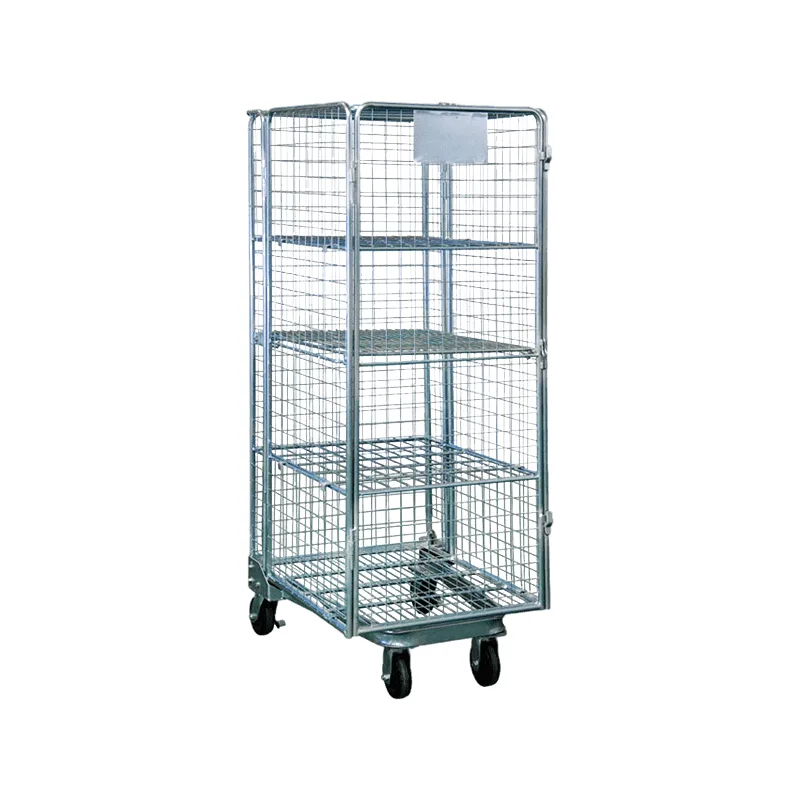

| PFRC014 | Four Layer Storage Folding Material Handling 4 Sided Roll Cage Trolley | 830 × 720 × 1750 | 500 kg | Galvanized | 153 pcs | Details |

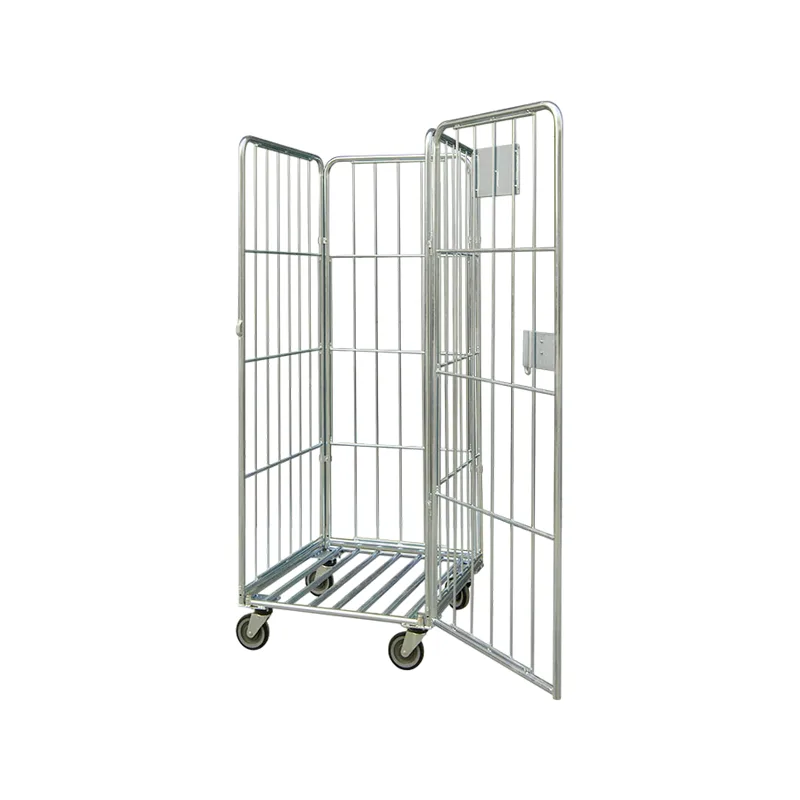

| PFRC015 | Industrial Warehouse Logistics Storage Collapsible Steel 4 Sided Mesh Roll Container | 800 × 712 × 1992 | 500 kg | Galvanized | 266 pcs | Details |

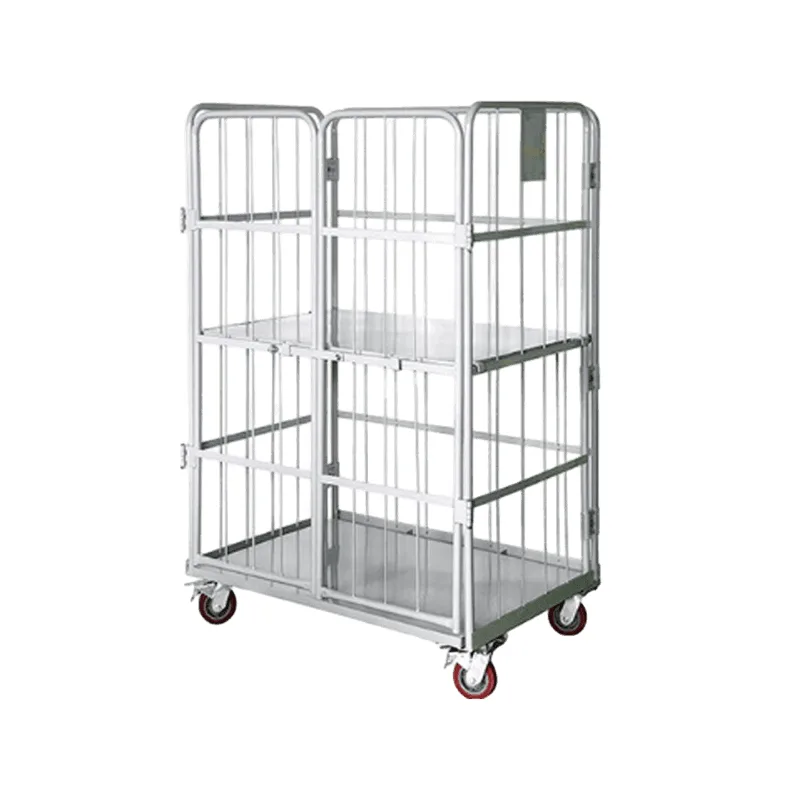

| PFRC016 | 4 Sides Powder Coated Folding Wire Mesh Logistic Roll Cage Trolley | 800 × 600 × 1700 | 500 kg | Galvanized | 168 pcs | Details |

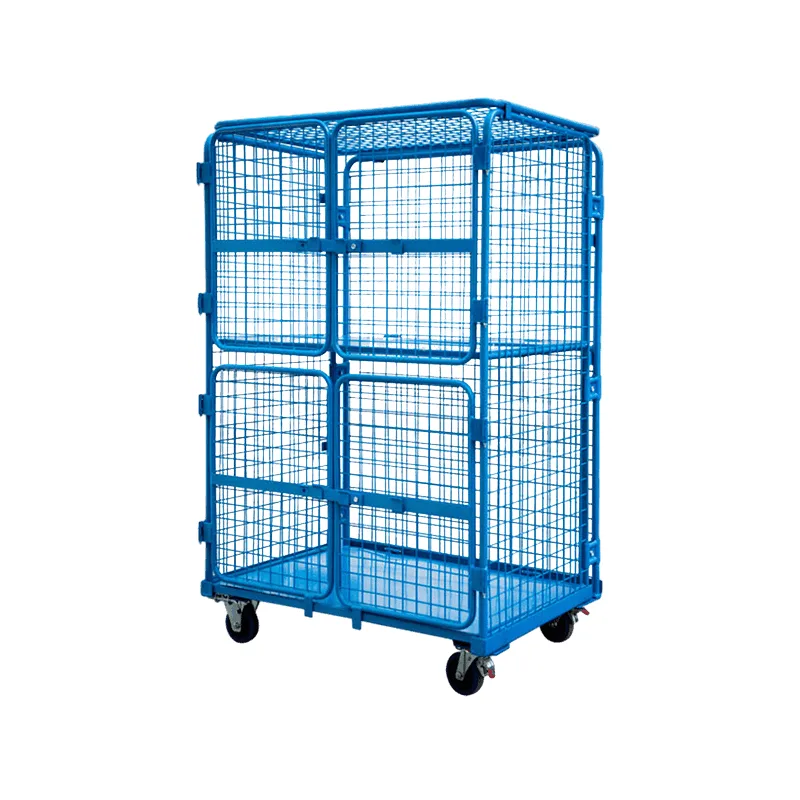

| PFRC017 | Heavy Duty 4 Sided Security Type Roll Cage Trolley With 4 Doors | 1100 × 800 × 1716 | 500 kg | Galvanized | 100 pcs | Details |

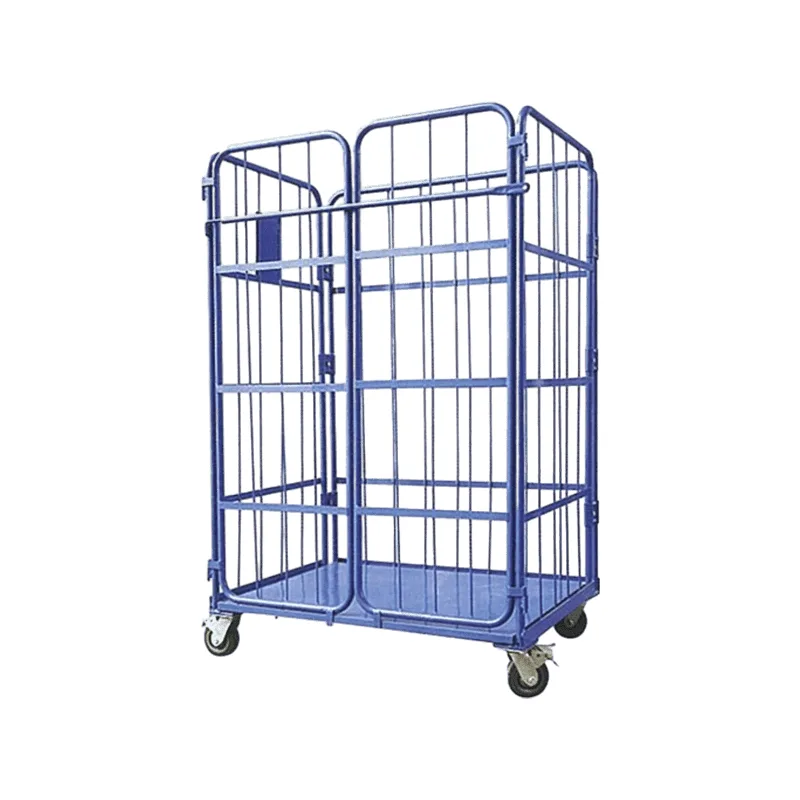

| PFRC018 | 4 Sided Powder Coated Logistic Warehouse Heavy Duty Wire Mesh Roll Trolley | 1100 × 800 × 1700 | 500 kg | Galvanized | 150 pcs | Details |

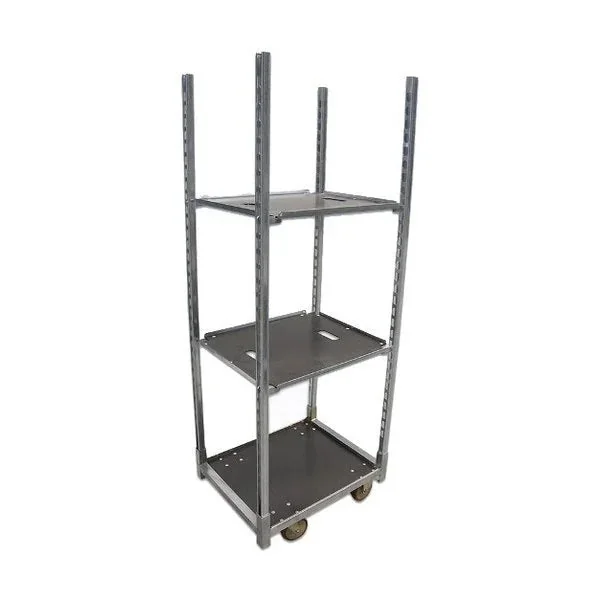

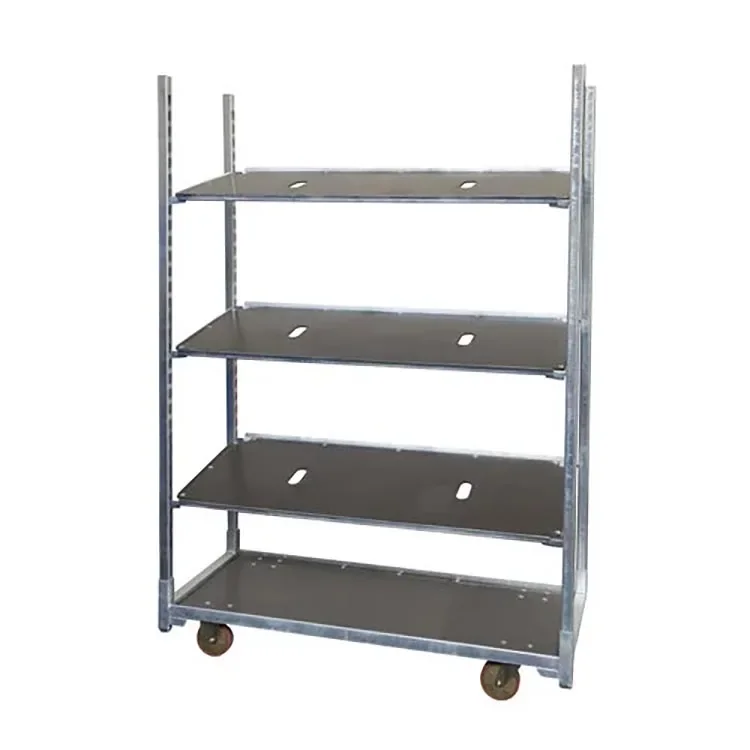

Plant Trolleys
2 modelsGalvanized plant trolleys for greenhouses, nurseries, flower markets and garden centers, used to transport and display plants.
Model Photos
MILK TROLLEY AND ROLL CAGE MODELS
One product photo per model, in the same families as the specification tables above.
Milk Roll Cage Trolleys
2 models
2-Sided Roll Cage Trolley
1 model
3-Sided Roll Cage Trolleys
8 models
4-Sided Roll Cage Trolleys
9 models
Plant Trolleys
2 models
Selection Guide
HOW TO CHOOSE YOUR MILK TROLLEY
Both models share the same 250 kg working load, so the tier count follows your crate height and the galvanized finish is the same on both.
With your crate dimensions and daily round size in the inquiry, we confirm the fit before quoting.
-
Four-tier roll cage
MT001, 32 kg frame
Taller shelf openings for mixed crate heights, and the lightest frame of the pair to push, covered in full on the product detail page.
-
Five-tier roll cage
MT002, 38 kg frame
One more shelf level within almost the same footprint gives more separation for smaller crates and bottled goods on supermarket rounds.
-
Larger roll cages
18 roll cage trolleys, 300–500 kg
For supermarket and warehouse rounds that need bigger cages, the 2-, 3- and 4-sided roll cage trolleys in the table above carry 300 to 500 kg and fold the same way.
Milk Trolley and Roll Cage Orders by the Container
With the quantity and destination port, we reply within 24 hours on working days and follow with a loading plan and a per-unit freight estimate.
