Aluminum and Stainless Steel Airport Trolleys
Sixteen airport trolley models with aluminum alloy or stainless steel frames, rated 90 to 250 kg, most on 180 mm natural rubber wheels with an automatic brake.
Airport Trolleys
ALUMINUM AND STAINLESS STEEL AIRPORT TROLLEYS
Our airport luggage trolleys, also called airport baggage carts or airport luggage carts in the US, come in 16 models from our factory parameter sheet: 7 with aluminum alloy frames, 8 in stainless steel and 1 in steel. Twelve of them carry 250 kg, and 11 have an automatic brake.
Most models run on 180 mm natural rubber wheels and carry an advertising plate. Each airport baggage trolley is packed in its own bubble bag, and a 40HQ container takes 204 to 410 trolleys depending on the model. Sizes, materials and container counts for every model are in the table below.
7 aluminum alloy, 8 stainless steel and 1 steel model.
Two 100 kg models and two 90 kg models complete the range.
Three models are listed without an automatic brake.
Model Ledger
AIRPORT TROLLEY SPECIFICATIONS
Sixteen models from our factory parameter sheet, grouped by frame material, with sizes, loads and container counts as listed.
Aluminum Alloy Airport Trolleys
7 modelsAluminum alloy frames with powder coated steel or stainless steel baskets, rated 90 to 250 kg.
| Product | Size (mm) | Load | Basket (mm / L) | Wheels | Automatic brake | Self-weight | 40HQ loading | |
|---|---|---|---|---|---|---|---|---|

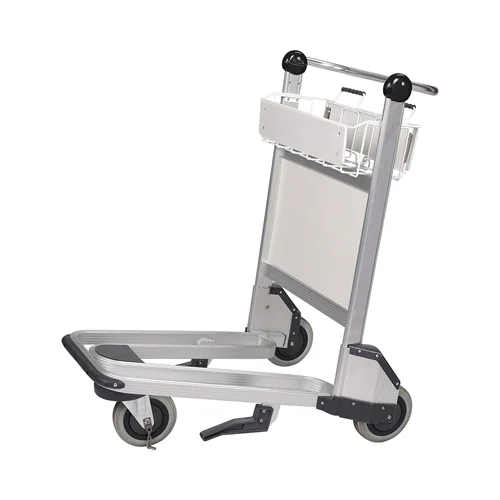

| Aluminum Airport Trolley 980 x 670 x 1040 mm | 980 × 670 × 1040 | 250 kg | 525 × 220 × 150 mm | 180 mm rubber | Yes | 18 kg | 252 pcs | Details |

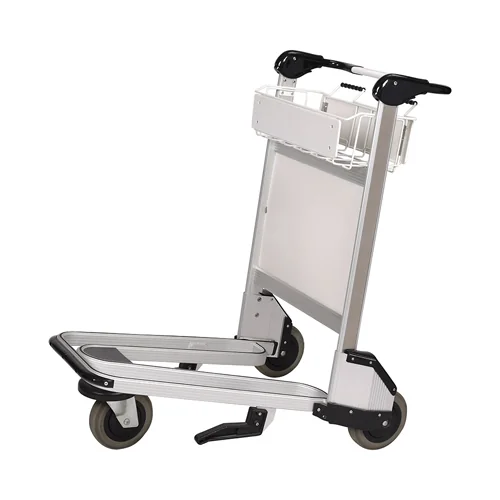

| Aluminum Airport Trolley 1030 x 670 x 1040 mm | 1030 × 670 × 1040 | 250 kg | 525 × 220 × 150 mm | 180 mm rubber | Yes | 18 kg | 252 pcs | Details |

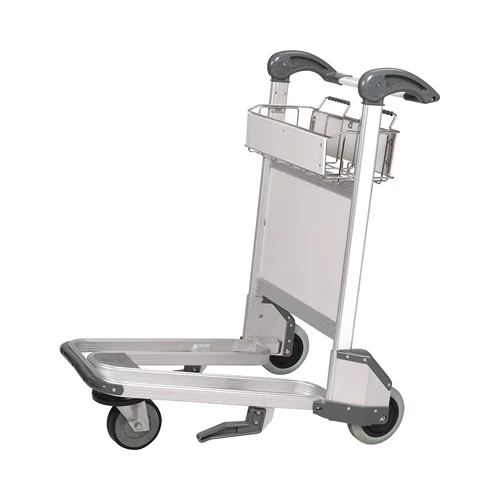

| Aluminum Airport Trolley 1030 x 670 x 1070 mm | 1030 × 670 × 1070 | 250 kg | 525 × 220 × 150 mm | 180 mm rubber | Yes | 20 kg | 252 pcs | Details |

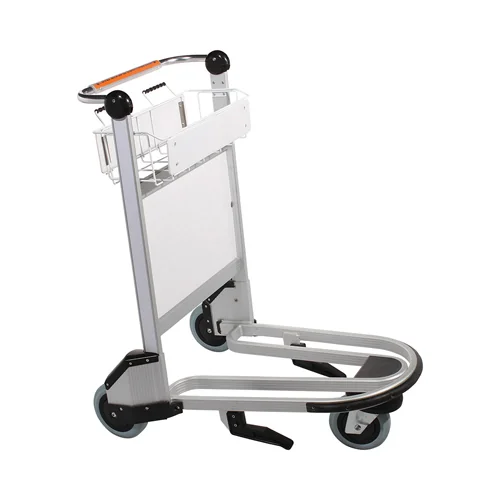

| Aluminum Airport Trolley 980 x 675 x 1050 mm | 980 × 675 × 1050 | 250 kg | 525 × 220 × 150 mm | 180 mm rubber | Yes | 19 kg | 252 pcs | Details |

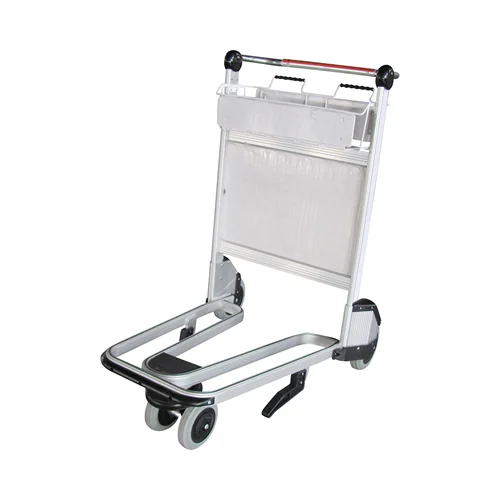

| Aluminum Airport Trolley 980 x 675 x 1050 mm with 160 and 180 mm Wheels | 980 × 675 × 1050 | 250 kg | 525 × 220 × 150 mm | 160 + 180 mm rubber | Yes | 19 kg | 252 pcs | Details |

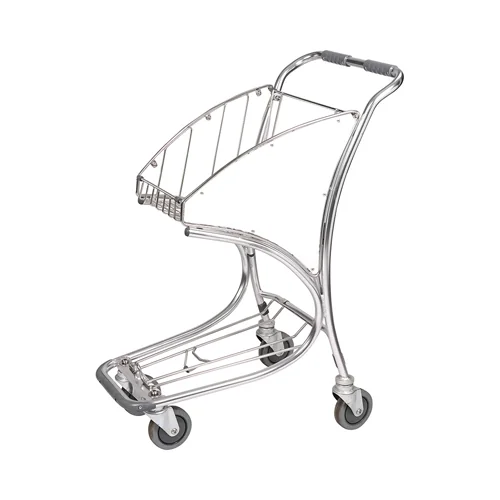

| 90 kg Aluminum Airport Trolley 790 x 525 x 1020 mm | 790 × 525 × 1020 | 90 kg | 410 × 470 × 450 mm | 125 mm TPU | No | 13 kg | 408 pcs | Details |

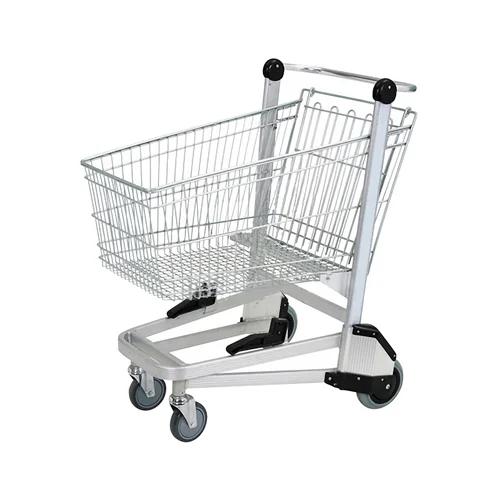

| Aluminum Airport Trolley 950 x 670 x 1040 mm with 150 L Basket | 950 × 670 × 1040 | 100 kg | 150 L | 5 in PU front, 180 mm rubber rear | Yes | 22.6 kg | 204 pcs | Details |
Stainless Steel Airport Trolleys
8 modelsStainless steel frames, most with stainless steel baskets, rated 90 to 250 kg.
| Product | Size (mm) | Load | Basket (mm / L) | Wheels | Automatic brake | Self-weight | 40HQ loading | |
|---|---|---|---|---|---|---|---|---|

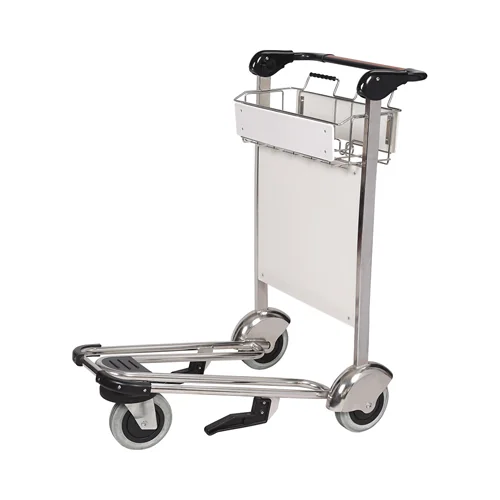

| Stainless Steel Airport Trolley 1020 x 620 x 1040 mm with 525 x 430 mm Ad Plate | 1020 × 620 × 1040 | 250 kg | 525 × 220 × 150 mm | 180 mm rubber | Yes | 21 kg | 252 pcs | Details |

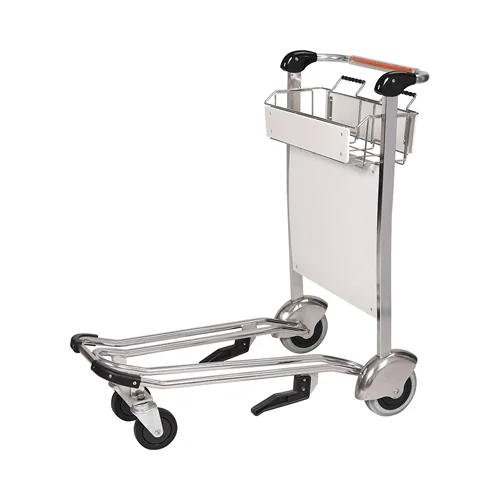

| Stainless Steel Airport Trolley 1070 x 620 x 1030 mm with TPU and Rubber Wheels | 1070 × 620 × 1030 | 250 kg | 525 × 220 × 150 mm | 125 + 180 mm TPU and rubber | Yes | 22 kg | 246 pcs | Details |

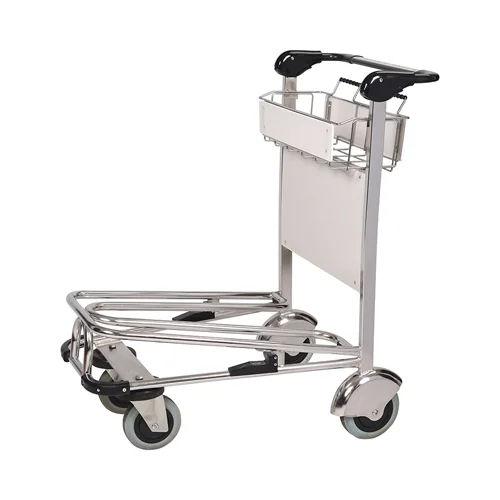

| Stainless Steel Airport Trolley 1020 x 620 x 1040 mm with 525 x 330 mm Ad Plate | 1020 × 620 × 1040 | 250 kg | 525 × 220 × 150 mm | 180 mm rubber | Yes | 23.5 kg | 252 pcs | Details |

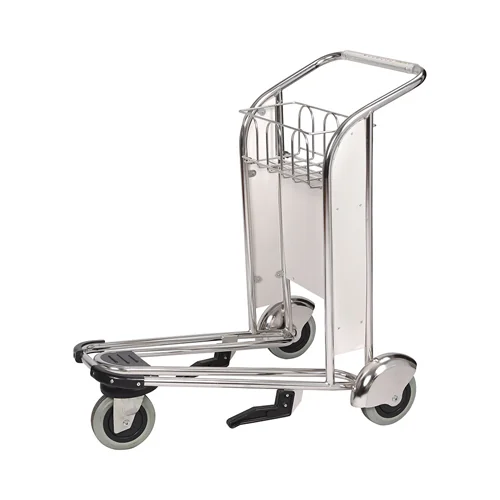

| Stainless Steel Airport Trolley 1000 x 670 x 1000 mm without Brake | 1000 × 670 × 1000 | 250 kg | 470 × 220 × 150 mm | 180 mm rubber | No | 21 kg | 252 pcs | Details |

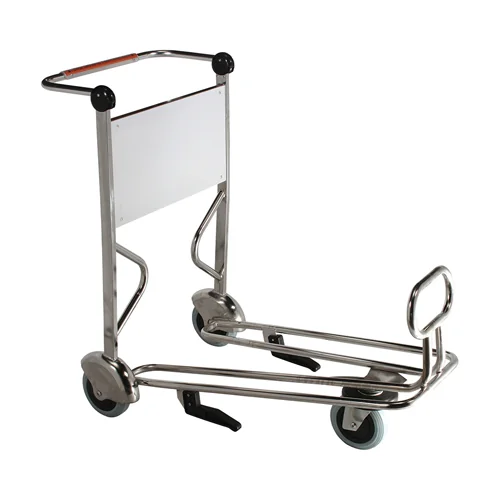

| Stainless Steel Airport Trolley 1250 x 670 x 1050 mm | 1250 × 670 × 1050 | 250 kg | — | 180 mm rubber | Yes | 23 kg | 240 pcs | Details |

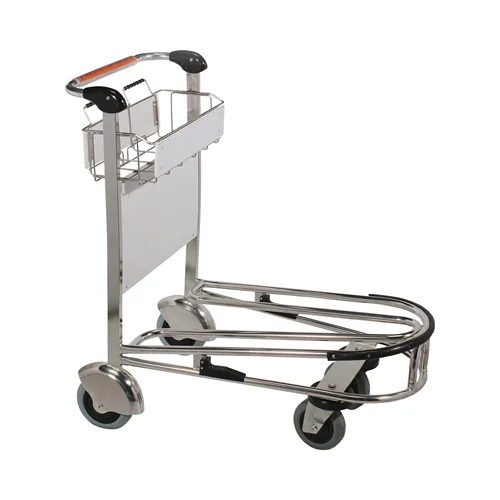

| Stainless Steel Airport Trolley 1070 x 620 x 1030 mm | 1070 × 620 × 1030 | 250 kg | 525 × 220 × 150 mm | 180 mm rubber | Yes | 24.5 kg | 252 pcs | Details |

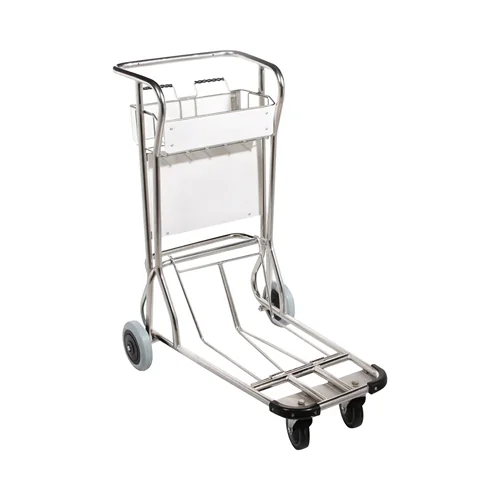

| Stainless Steel Airport Trolley 1090 x 670 x 1030 mm without Brake | 1090 × 670 × 1030 | 250 kg | 455 × 220 × 150 mm | 125 + 180 mm TPU and rubber | No | 22 kg | 252 pcs | Details |
| 90 kg Stainless Steel Airport Trolley 710 x 510 x 1000 mm | 710 × 510 × 1000 | 90 kg | 390 × 380 mm | 125 mm TPU | — | 13 kg | 408 pcs | Details |
Steel Airport Trolley
1 modelA steel frame with a zinc and powder coated finish and 5 inch PU wheels on double axles, rated 100 kg.
| Product | Size (mm) | Load | Basket (mm / L) | Wheels | Automatic brake | Self-weight | 40HQ loading | |
|---|---|---|---|---|---|---|---|---|

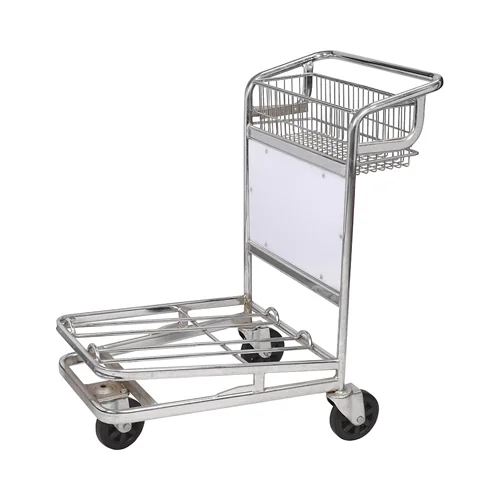

| 100 kg Steel Airport Trolley 940 x 570 x 980 mm | 940 × 570 × 980 | 100 kg | — | 5 in PU, double axles | — | 18.5 kg | 410 pcs | Details |
Model Photos
AIRPORT TROLLEY MODELS
One product photo per model from the factory parameter sheet.
Shared Production Line
BUILT ON FORTY YEARS OF TROLLEY MANUFACTURING

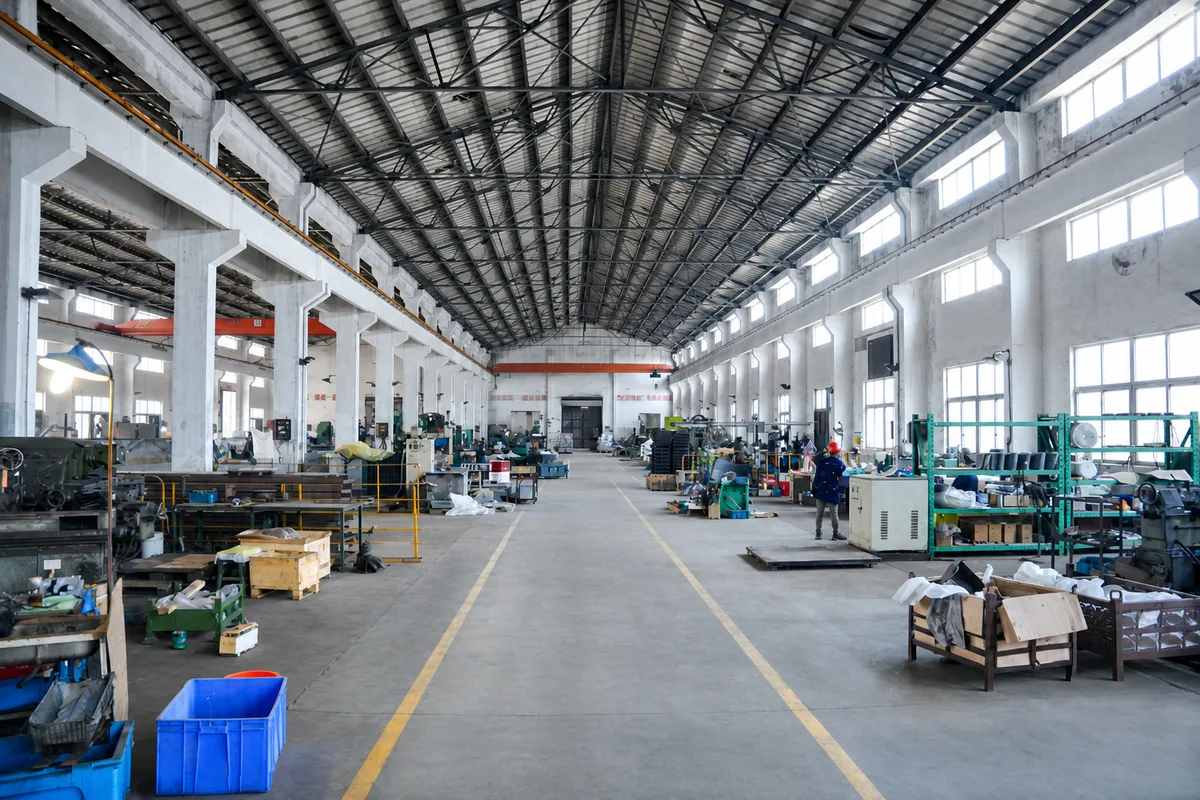

Airport trolleys are made on the same stations as every Ping Fang trolley since 1984, and the equipment below is what they are welded, finished and inspected on.
Robot Welding
18 automatic robot welding machines
Robot welding repeats the same joint on every frame, so each trolley in an order is welded the same way.
Laser Cutting
6,000 W plate and 3,000 W pipe lasers
Tube and sheet blanks are cut to program, so parts match from the first trolley of an order to the last.
Surface Treatment
Sand blasting and automatic painting line
Steel parts are sand blasted and coated on the automatic painting line.
Four-Checkpoint QC
ISO9001 quality system
Incoming material, in-process, pre-finishing and final inspection, with a quality inspection report before shipment.
Patents And Export Record
PATENTS AND EXPORT RECORD
Ping Fang has made transport trolleys since 1984. Two utility model patents cover trolley running gear, and our trolleys already ship to the markets below.
Utility model patents covering cart running gear, with both scans on the certificates page.
A 200 kg platform trolley with braked rubber wheels for luggage and boxes, listed in the flatbed cart range.
The markets our trolleys already ship to.
Project Checklist
WHAT TO SEND FOR AN AIRPORT TROLLEY QUOTE
Three facts and your brake and wheel choice let us quote an airport trolley order in one reply.
Every inquiry is answered within 24 hours on working days, straight from the technical sales team.
-
Model
From the table above
The product name or overall size from the model table, or a photo and dimensions of the trolley you use now.
-
Quantity
Pieces per order
A 40HQ container takes 204 to 410 trolleys depending on the model, and the loading plan follows the quantity.
-
Destination and terms
FOB or CIF
Destination port and preferred trade terms are confirmed together with the quotation.
-
Brake and wheels
As listed per model
Eleven models have an automatic brake, and the wheel size and material of each model are in the table.
Request a Quote for Airport Trolleys
Send the model, quantity and destination port, and we reply within 24 hours on working days.
