OEM Custom Racks
18pcs
Automatic robot welding machines
Two robot welding workshops with 20 Panasonic robot welding arms, set up in 2008.
Specifications
The fields recorded on the original build sheet. A custom fixture carries the rest of its dimensions on the project drawing.
| Overall Size | 1995 × 1060 × 1763 mm |
|---|---|
| Surface Treatment | Powder coating |
| Build Basis | Customer drawings or samples |
Powder coating, this rack
The original build sheet lists powder coating for this rack, the finish listed for every rack in the custom line. The coat covers each shelf tier and the caster base shown in the drawings. No load rating is listed for this build.
Galvanized, the trolley side
Zinc plating appears elsewhere in our range, for example on the 4-tier zinc plated milk trolley. Every rack in this custom line is listed with powder coating instead.
At 1763 mm, this build is 563 mm taller than the canopy rack and 613 mm taller than the tilting-frame rack, on a smaller footprint than either.
Where the multi-tier lamp rack works
The design drawings show lamps stored on several sloped tiers, with a towing hitch on the caster base. The rack stands 1763 mm high, the tallest of the three lamp racks.
Towed in-plant moves

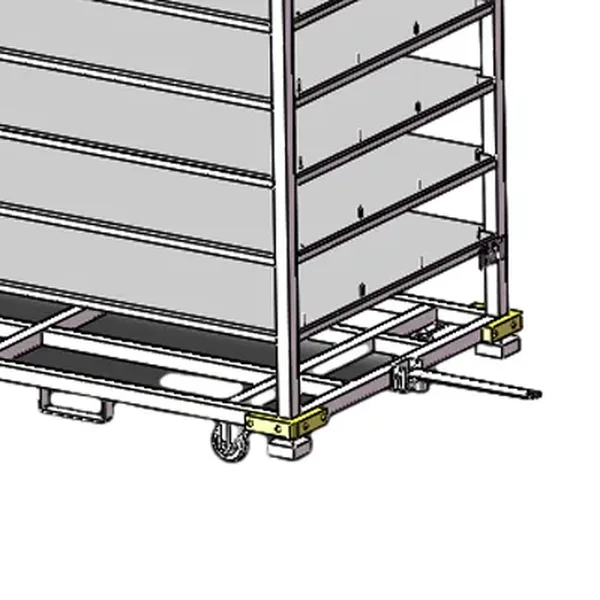

The caster base carries a towing hitch in the design drawings, so the rack can be towed with its tiers loaded. The hitch and caster layout for a project are set on the drawing.
Automotive parts logistics
Racks in this custom line are built to carry automotive parts, and our custom automotive racks page shows the whole line. Each build on these pages was made for one specific part, as its name shows.
Vertical lamp storage
Several sloped tiers stand on a 1995 × 1060 mm footprint, the smallest of the three lamp racks. The canopy rack and the tilting-frame rack cover 2.70 m² and 2.24 m² of floor, against 2.11 m² here.
How These Custom Racks Are Built
Every rack in this line is a custom build. Our R&D team develops and produces racks based on customer provided drawings or samples, so the size, load capacity and fittings of each project follow the part the rack carries. The racks on these pages are finished examples of that work.
Steel parts are cut on a 6,000 W laser plate cutting machine and a 3,000 W laser pipe cutting machine, added in 2022 to bring more stable product quality. The laser cuts parts to the design requirements and leaves flat, smooth edges that need no secondary processing. Frames are joined by 18 automatic robot welding machines, whose visual recognition and precise servo control systems give uniform, firm welds at millimeter-level precision and reduce human error. The production equipment also includes an intelligent automatic painting line and sandblasting machines, and the surface treatment listed for every rack in this line is powder coating.
Quality inspection runs in four steps, covering incoming materials, inspection by workers and quality inspectors during production, inspection before surface treatment and a final inspection before delivery. Every link of the process has its own quality control points, raw material warehousing inspection and finished product delivery included. A quality inspection report is provided before delivery, and production process design and program control keep each batch stable and traceable.
After delivery, an after-sales service team made up of technical staff provides 24-hour tracking service on the order.
FAQ
What size is the Multi-Tier Car Lamp Storage Rack?
It measures 1995 × 1060 × 1763 mm.
What surface treatment does the Multi-Tier Car Lamp Storage Rack have?
The surface treatment is powder coating.
Why are the shelf levels sloped?

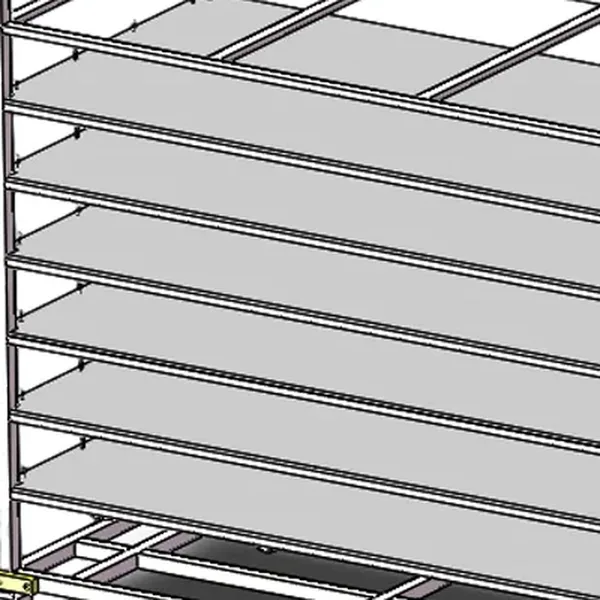

The design drawings show each shelf tier set at a slope rather than flat. The tier count and pitch follow the lamps the rack is built for, and are set on the project drawing. The images on this page are design drawings of the build.
Where is the load rating for the multi-tier lamp rack?
On the project drawing. The original build sheet records only the size and surface treatment for this rack, so the load capacity is confirmed on the drawing for each order, together with the tier count. Among the three lamp racks, only the canopy rack lists a load rating, 1,000 kg.
Can the tier count or pitch be changed for my trays?
Yes. Our R&D team develops and produces racks based on customer provided drawings or samples. The other two lamp racks in this line are a canopy rack with shaped cradles and a tilting-frame rack with a solid deck.
How many multi-tier lamp racks fit into a 40HQ container?
The original build sheet gives no container count for this rack. At 1995 × 1060 × 1763 mm, the number per 40HQ depends on the final drawing and the order quantity, so it is worked out in the loading plan before shipment.
What comes with a shipment of multi-tier lamp racks?
A quality inspection report is provided before delivery, after the four inspection steps described in the section above. The container loading plan is confirmed with the order, since a custom rack has no fixed container count.
