Product Description

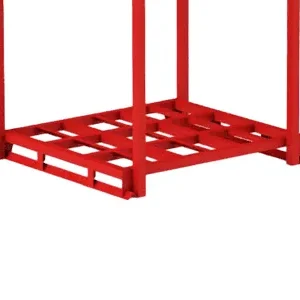

Our Heavy-Duty Cargo Storage Transport Durable Stacking Frames for pallet 1310 category offer a reliable and efficient solution for your cargo storage and transport needs. These stacking frames are specifically designed to fit pallet 1310, ensuring a secure and stable stacking system. Built with durability in mind, these frames are crafted from high-quality materials that withstand heavy loads and harsh environments. Whether you need to store or transport heavy-duty items, these frames are up to the task.
They are engineered to provide strength and stability, ensuring the safety of your goods during transportation. The stacking frames are designed with a user-friendly stacking system, allowing for easy and efficient stacking and unstacking of multiple pallets. This feature saves valuable time and effort, making it an ideal choice for businesses that deal with large quantities of cargo. With its robust construction and durability, our heavy-duty stacking frames are capable of withstanding repeated use and rugged conditions.
This ensures their longevity and minimizes the need for frequent replacements, resulting in cost savings for your business.
Specifications
These are the fields a cargo buyer checks first, as printed on the factory sheet. Full dimension drawings are sent with the quotation.
| Model | PFSF009 |
|---|---|
| Overall Size (L × W × H) | 1470 × 1200 × 1535 mm |
| Rated Load | 1,000 kg per frame |
| Suitable For | Pallet 1210 (single-deck) The factory sheet lists pallet 1210 while the product name says 1310, so the pallet fit is confirmed on the dimension drawing with your quotation. |
| Surface Treatment | Powder coating |
The tall build, as on this frame
At 1535 mm, PFSF009 is the tallest step on the 1470 × 1200 chassis. The extra height gives clearance, so cargo that stands high rides under the frame above without touching it.
The shorter steps on the same chassis
The identical footprint runs at 1435 mm as PFSF008 and at 1235 mm as the PFSF007 tire pallet, so the right post is the one that clears your cargo rather than the tallest one.
Every centimetre of post also takes container space on the way over, which is one reason the family offers several heights. The family also includes the large-capacity PFSF011 stacking frame .
Where the heavy duty cargo frame works
Named for storage and transport, the frame keeps cargo on one steel platform through both.
Warehouse block stacking
Loaded pallets stack vertically without fixed racking, and the tall posts suit warehousing and distribution floors that store high-standing cargo.
Site-to-site cargo transport
The load ships on the same frame it is stored on, one platform between the packing bench and the destination floor with no restacking.
Tall and bulky goods
1535 mm of post gives clearance for cargo that stands high, goods the shorter steps of the chassis would press against.
FAQ
What is the load capacity of the PFSF009 stacking frame?
The load capacity is 1,000 kg per frame.
What size is the PFSF009 stacking frame?
It measures 1470 × 1200 × 1535 mm.
What surface treatment does the PFSF009 stacking frame have?
The surface treatment is powder coating.
Which pallet does the PFSF009 frame actually take?
The factory sheet lists pallet 1210 (single-deck) while the product name says 1310. The two are reconciled on the dimension drawing sent with your quotation, so the fit is confirmed on paper before production rather than discovered at the dock.
Why choose the 1535 mm post over the shorter builds?
Clearance. The same 1470 x 1200 mm chassis runs at 1235, 1435 and 1535 mm, and the rating stays 1,000 kg per frame, so the reason to choose height is cargo that stands high. If yours does not, a shorter post saves container space.
How high can loaded PFSF009 frames be stacked?

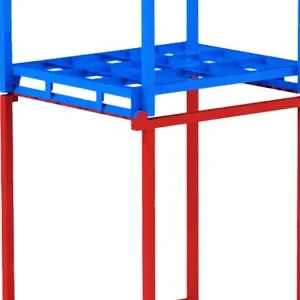

Frames seat on each other through the corners on the post tops, and the photo shows a two-high stack. The safe height for your goods and floor is confirmed with the drawings and quotation rather than promised as a single number.
What makes this frame “durable” in practice?
Welded steel construction under a baked powder coat, a finish suited to forklift abrasion under tonne-scale loads. Every batch passes four inspection checkpoints and ships with its QC report.
